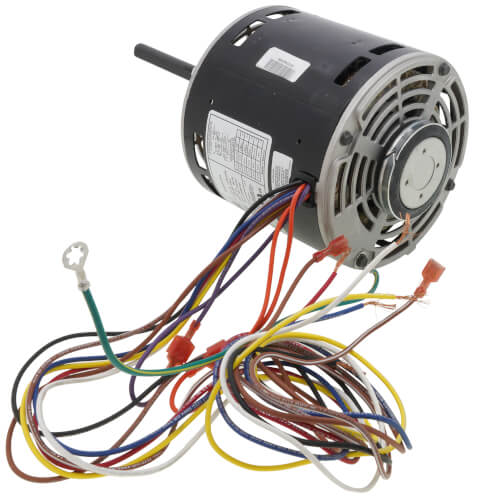

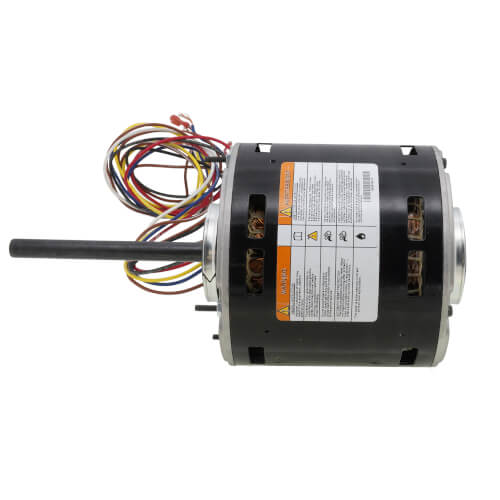

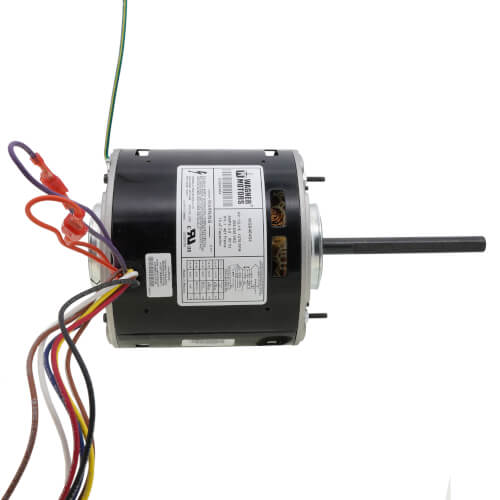

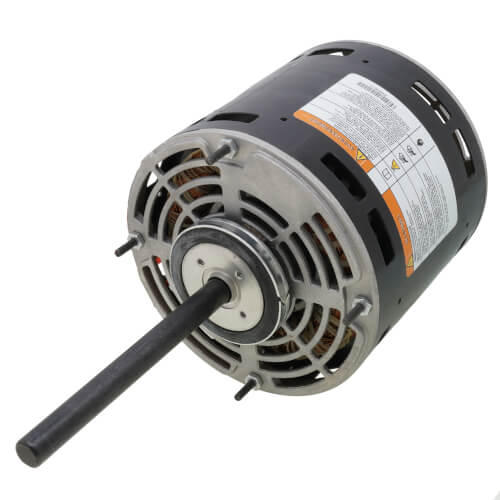

1/2 - 1/6 HP, 208-230 VAC Direct Drive Furnace Blower Motor (1075 RPM)
Hover image to zoom

1/2 - 1/6 HP, 208-230 VAC Direct Drive Furnace Blower Motor (1075 RPM)

SKU:
WG840464
Rating:
(0)
Q&A:
(0)
1/2 - 1/6 HP, 208-230 VAC Direct Drive Furnace Blower Motor (1075 RPM)
Hover image to zoom
$111.47 each
In Stock
In Stock
Get 3 Wed, Jul 17
More Available
Fast Track Logo
Order by today, receive Wednesday
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Voltage icon
208/230v
RPM icon
1075 RPM
Rotation icon
Reversible
Horse Power icon
1/6, 1/5, 1/4, 1/3, 1/2 HP
Amperage icon
3.6, 1.8, 3.9, 2.5, 1.3 Amps

Description

Wagner motors are specially engineered for the aftermarket. They are high quality motors designed with contractors in mind. The simple, informative and easy to read color packaging makes motor selection very easy. The unique carton handle makes carrying of the motor easy with one hand. There are numerous features such as extended bolts and extended lead wires make installation a breeze. Wagner motor’s time-tested performance is equivalent or better than OEM motors.


The Multi-Horsepower motors are specially designed to cover a range of applications. The direct drive furnace blower motors range from 1/2 to 1/6 in both 115 and 230 volts and 3/4 to 1/5 in both 115 and 230 volts all at 1075rpm. These motors feature reversing plugs, extended thru bolts 36 inch leads and are designed for 370 volt capacitors. Installs with all 48 mounting brackets.



Features and Benefits
  • Standard 48 Frame Motor Casing Size
  • Standard Shaft Length, Diameter, and Flats
  • Electrically Reversible
  • Automatic Thermal Overload Protector
  • Class B Insulation
  • Continuous Air Over
  • Low Power Consumption
  • Quiet Operation

Specs

Motor:

Direct Drive

Product Type:

Blower Motor

Horse Power:

1/6

1/5

1/4

1/3

1/2

Voltage:

208/230v

RPM:

1075

Amperage:

3.6

1.8

3.9

2.5

1.3

Speeds:

4

Bearings:

Ball

Hertz:

60

Rotation:

Reversible

Insulation Class:

B

Max Ambient Temp (°F):

140°F

Frame:

48

Duty:

Continuous Air Over

Overload Protection:

Thermally

Automatic
