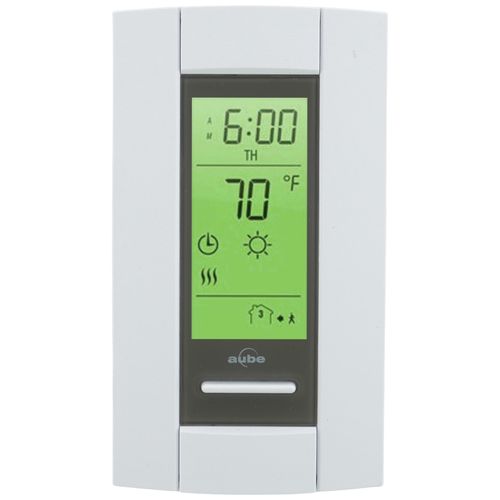

7-Day Programmable Line Volt Thermostat for Electric Heating, TH115-A-120S
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
Product Highlights
Description
Features:
- Advanced temperature control ensures total comfort by minimizing temperature swings
- ON/STANDBY switch enables thermostat shutdown at the end of heating season for added security
- On-screen heating power indicator gives at-a-glance verification of power being used
- Early Start function ensures programmed temperature is reached by programmed time
- Temporary bypass enables temperature override without changing programming
- Attractive design includes hidden programming buttons
- Battery-free backup means no re-programming your schedule after a power outage
- Switch Type: Epoxy-soundproofed relay
- Backlit Display
- Remote input for telephone controller
- Used With: Aube CT240/CT241 Telephone Controller
Specs
| Application: | Electric Heat (Line Voltage) Heat Only |
|---|---|
| Stages: | 1 Heat |
| Programmability: | 7 Day Programmable |
| User Interface: | Push Button |
| Mount: | Vertical |
| Options: | Large Display |
| Power Method: | Hardwired |
| Wattage: | 2000 |
| Temperature Range (F): | 40°F - 86°F |
| Voltage: | 120v |
| Amperage: | 16.7 |
| Switch: | SPST |
| Frequency: | 50-60 Hz |
| Color: | White |
| Height: | 4-9/10" |
| Width: | 2-4/5" |
| Depth (Inches): | 9/10" |

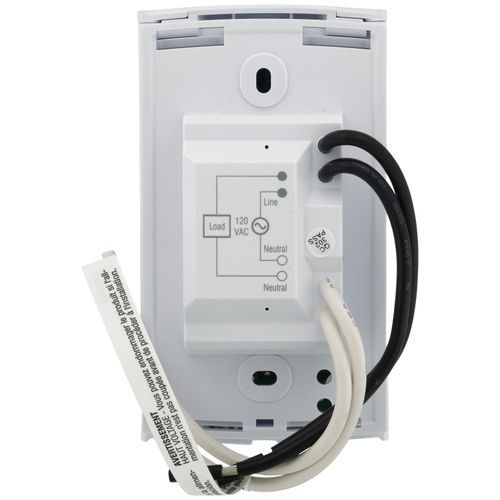

| Electric Connection: | 6" Tinned Copper Lead Wires |
| Wireless: | No |
| Humidity Control: | No |
Questions?
Compare Similar Products
Heat Only
Programmable
You May Also Need
Product Reviews
Most Liked Positive Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
I'm buying another, works great!
Most Liked Negative Review
Good, but not as versatile as i had hoped.
Very Nice
I'm not builder to buy again.
I would buy this again.
Great replacement
A nice stat
Replacement for SunTouch 500650 Thermostat
Nice Thermostat
Works perfectly and as described
So far, so good...
Good price.
Product Q&A
11 QuestionsQ: Can the TH115 -A -120S replace a defective Lux EVL 1001 thermostat controlling a Taco 007 - F5 circulator pump in a hydraulic baseboard heating zone.
Asked by Joseph 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Joseph, thanks for writing in. I do not see any results for the Lux number you provided, however, this thermostat will work with a 120V baseboard heater and can handle a maximum of 2000W.
Q: Does this model include GFCI built in?
Asked by Damon 12 years ago
Add your answer
Verified Reply- SupplyHouse StaffThis model does not include GFCI. TH115-AF-GA is a similar thermostat that does include it.
One of the first reviews stated that it does not have GFCI but he had tapped into an existing GFCI so it's GFCI protected anyway. Personally I wouldn't want one with GFCI built in any way GFCI's tend to fail a lot more often than thermostats and having a GFCI built in would bring the cost up to near $100.00 then when either part fails you have to replace the hole thing instead of just $15.00 for a new GFCI if that's the only thing that has failed.
Q: seem to have lost power to unit...its hardwired,, are there batteries involved?
Asked by rvr 13 years ago
Add your answer
There are none in any of mine. I'd check the breaker first, the unwire and desire the unit to another location. If no power at new location then unit is dead. If power is at new location then issue is with electrical in the dwelling. Sent from my iPhone
Q: Could this be used to control a new wall outlet? I'd like to use it with a corded panel heater. The heater would be probably only 500W to 750W.
Asked by Gary 13 years ago
Add your answer
The thermostat has a temp probe that is placed in the floor to regulate temperature, the problem I see is getting a accurate temp reading with a thermostat not used as intended. They may be better off with a wall mounted baseboard heater thermostat which has an internal thermostat and is rated to switch 120 volts. Either way this one will switch the power to a wall receptacle but may not regulate temperature properly depending on the placement of the temp probe. Sent from my iPhone
Yes, as long as your load don't exceed 13 amps or 1500 watts.
Q: My electric company had a conservation group replace old thermostats in my whole house with this model TH115. With the exception of the bathrooms which they explained they wouldn't replace in any bathrooms because of dampness. Do these fail in damp conditions? Contemplating hiring my own electrician to replace the two bathroom thermostats that they wouldn't do.
Asked by pal 13 years ago
Add your answer
Sorry I cannot be too helpful on this. We have installed these in bathrooms but the humidity in our area averages around 14%. The occasional dampness in the bathrooms when showering does not seem to have affected them.
I have these in 5 bathrooms. I have in-floor heating cables under the tile. Thermostat is not sealed. It should be mounted where there is no risk of water splashing on it. It's a common sense thing. Bathrooms obviously have wet locations in them, but thermostats are not prohibited in bathrooms. My local building codes do not require bathroom thermostats to be sealed. Going on 10 years with This thermostat in my Master bath. It does switch 120 V power. Sounds like they don't want the liability. Thank a lawyer!
Q: IS THIS THERMOSTAT WORKS WITH FLOOR SENSOR FOR ELECTRIC FLOOR MATT 120V ?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffNo, this unit does not work with a floor sensor.
If you get the sensor AC112-01 you can sense the floor temperature. In the model number, "A" and "AF"(ambient and ambient/floor) refers to the packaging if the unit. The actual thermostat is the same in both versions.
Q: when you say 7 day programable do you mean that each day has a separate program?
Asked by russ the handy 14 years ago
Add your answer
Verified Reply- PexSupply Staff7-day programmable thermostats have the same programs for all seven days of the week. 5-2 models have different programs for the weekend, and 5-1-1 thermostats can accommodate different settings for weekdays, Saturday, and Sunday.
Q: I need a thermostat for electric baseboard heat that will handle 4000 watts. What's the right model? Thanks.
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThis thermostat can handle a maximum of 2000W at 120VAC. TH115-A-240S units can handle 4000W at 240VAC.
Q: By line voltage I am assuming they mean 110v I bought one earlier that was low voltage unit
Asked by celenbaas 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, they mean 110v.
Q: may i use this thermostat on a non-electric heaitng system (hot water heating system with circulating pumps). The old thermostat is 120V.
Asked by Andrew 15 years ago
Add your answer
Verified Reply- PexSupply StaffIf the old thermostat has only two wires, it will not work; the TH115-A-120S is a four-wire thermostat. If there is no voltage at all on the wires coming from the pump to the output of the thermostat, the thermostat output can power the pump up to 1/3 HP maximum 2A.
