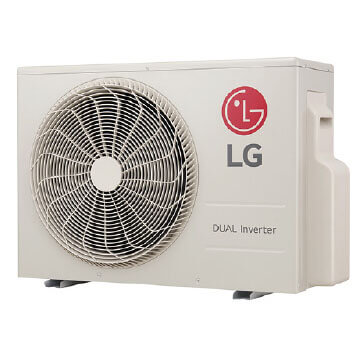

9,000 BTU, R-410A, SEER 20 Inverter Heat Pump - Mega Series Value Line, 208/230V (Outdoor Unit)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$714.90 each
Out of Stock
Get it Tue, Jun 23 - Thu, Jul 2
MANUALS (1)
This item replaces: LSU090HEV1
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 65.25 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
9000 BTUs
10900 BTUs
1/4"
3/8" SL
Yes
208/230V
Description
–
Rebates:
You may be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about rebate programs that apply to you. LG Rebate Center
Note: The HEV2 model is not backwards compatible.
LG's new line of heat pump duct-free split products.
This is an outdoor unit only. Indoor unit (LSN090HEV2) must be purchased separately.
The single-zone systems feature energy-saving Inverter (variable-speed compressor) technology and can be controlled through a standard wireless remote or an optional wired wall controller.
FeaturesInverter variable-speed compressor in the outdoor unit for energy-saving operation
Self-cleaning coils in the indoor unit for easier maintenance
Many modes included, controlled through wireless remote: Cooling, Heating, Dehumidifying, Fan, Auto, Auto Sleep, Defrost
Four-way Auto Swing feature
Chaos Wind electronically controls fan speeds to create a more natural flow of air; Jet Cool / Jet Heat operates at high fan speeds for 30 minutes to quickly cool / heat down a room
Operates down to 64°F in cooling mode
Ultra quiet indoor unit operation
Allows refrigerant piping lengths up to 66 or 98 feet, and elevation difference of 33 or 49 (depending on the model)
R410A refrigerant
LG Mini-Split, Duct-Free Air Conditioning Installation & Warranty Info
We recommend the installation of all LG Ductless Split Systems to be done by a licensed, trained & qualified HVAC technician with the proper knowledge and background. A trained technician will be able to judge the best location for the air handling (evaporator) unit and also the correct size for the area it has to cool.
Should you experience an issue during the installation or the initial startup of the unit please do not contact the manufacturer. You should have the technician that installed the units contact us or the manufacturer. LG cannot accept any service or warranty calls from anybody but a licensed HVAC technician.
Neither we or LG Electronics U.S.A. can be held liable for improper installation and operation of any LG air conditioning product purchased from our company. Should a warranty issue arise where parts will need to be replaced, an installation receipt will be required along with your sales receipt. Failure to provide a receipt or invoice may result in the warranty not being honored.
Note: Warranties on mini split air conditioners only include parts and do not include labor. The licensed HVAC Technician who installs your air conditioner should always provide you with a labor warranty (preferably for a full year to compliment the manufacturers' parts warranty).
You may be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about rebate programs that apply to you. LG Rebate Center
Note: The HEV2 model is not backwards compatible.
LG's new line of heat pump duct-free split products.
This is an outdoor unit only. Indoor unit (LSN090HEV2) must be purchased separately.
The single-zone systems feature energy-saving Inverter (variable-speed compressor) technology and can be controlled through a standard wireless remote or an optional wired wall controller.
Features
LG Mini-Split, Duct-Free Air Conditioning Installation & Warranty Info
We recommend the installation of all LG Ductless Split Systems to be done by a licensed, trained & qualified HVAC technician with the proper knowledge and background. A trained technician will be able to judge the best location for the air handling (evaporator) unit and also the correct size for the area it has to cool.
Should you experience an issue during the installation or the initial startup of the unit please do not contact the manufacturer. You should have the technician that installed the units contact us or the manufacturer. LG cannot accept any service or warranty calls from anybody but a licensed HVAC technician.
Neither we or LG Electronics U.S.A. can be held liable for improper installation and operation of any LG air conditioning product purchased from our company. Should a warranty issue arise where parts will need to be replaced, an installation receipt will be required along with your sales receipt. Failure to provide a receipt or invoice may result in the warranty not being honored.
Note: Warranties on mini split air conditioners only include parts and do not include labor. The licensed HVAC Technician who installs your air conditioner should always provide you with a labor warranty (preferably for a full year to compliment the manufacturers' parts warranty).
Specs
–
| Product Type: | Outdoor Unit |
|---|---|
| Application: | Cooling Heating |
| Cooling Capacity (BTU): | 9000 |
| Heating Capacity (BTU): | 10900 |
| Air Circulation (CFM H/M/L): | 276/226/177 |
| Dehumidification (Pts/Hr): | 2.12 |
| Fan Speeds: | 4/4/4 |
| Energy Star Rated: | Yes |
| Outdoor dB(A): | 47 |
| Voltage: | 208/230V |
| Phase: | 1 |
| Hertz: | 60 |
| Number of Zones: | 1 |
| Width (Inches): | 28-1/4" |
| Height (Inches): | 19.5" |
| Depth (Inches): | 10-21/32" |
| Refrigerant Type: | R-410A |
| Liquid Line: | 1/4" |
| Suction Line: | 3/8" |
| Connection Type: | Flare |
