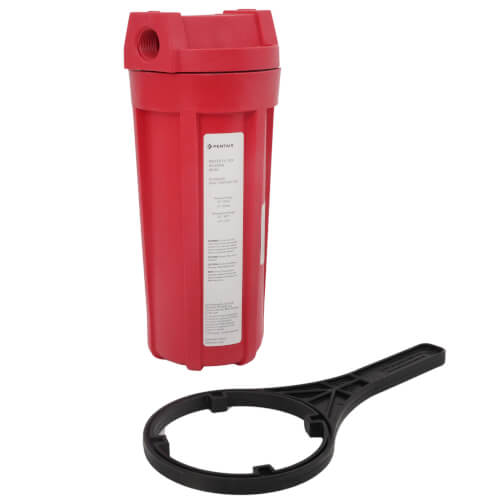

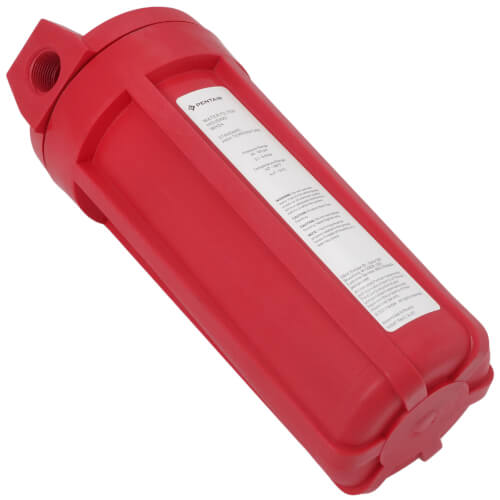

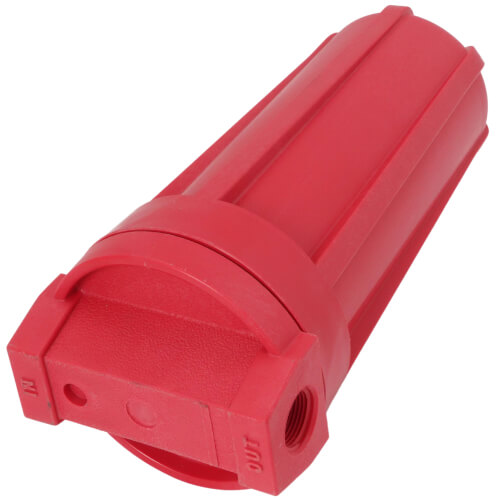

WH34, 3/4" High Temperature Housing w/ Mounting Bracket (30-125 PSI)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
152009 has been discontinued
Discontinued February 5, 2025
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
125 MAX PSI
3/4"
3/4"
NPT Connection
12-1/8"
5-1/8" Diameter
Description
–
Features:
- Manufactured of a durable polypropylene, clear Styrene-Acrylonitrile (SAN), or glass-reinforced nylon
- Thick walls for increased strength
- Offered in 10" size
- Equipped with 3/4" NPT inlet and outlet ports
- Accommodate a wide range of 2-1/4" to 2-7/8" diameter cartridges
- Include installation hardware, sump wrench, and manual
- Able to withstand temperatures up to 165°F (74°C)
- Constructed of glass-reinforced nylon
- An economical alternative to stainless and carbon steel housings
- Excellent chemical compatibility makes this housing an ideal choice for a wide variety of industrial applications, including those involving organic solvents, sea water, alcohol, petroleum and vegetable oils
- Includes silicone O-ring
- Wrench included (152037)
Replacement Filter Cartridge Options:
- W5P, Spun Polypropylene Fibers Sediment Filter Cartridge - 2 Pack (5 Microns)
- W25P, Spun Polypropylene Fibers Sediment Filter Cartridge, 25 Microns (2 Pack)
- WPD-110, Polydepth Thermally Bonded Polypropylene Sediment Filter Cartridge (5 Microns)
- WPD-25, Polydepth Thermally Bonded Polypropylene Sediment Filter Cartridge, 25 Microns (2 Pack)
- W30PE, Pleated Polyester Fibers Sediment Filter Cartridge, 2-Pack (30 Microns)
- W50PE, Pleated Polyester Fibers Sediment Filter Cartridge, 50 Microns (2 Pack)
- W.5CB, Acid-Washed Bituminous Carbon Block Drinking Water Filter Cartridge (0.5 Microns)
- WLC-R, Acid-Washed Bituminous Carbon Block Drinking Water Filter Cartridge (0.5 Microns)
- W5CIP, Activated Carbon Impregnated Cellulose Drinking Water Filter Cartridge (2 Pack)
- W30W, Polypropylene String Wound Sediment Filter Cartridge, 2-Pack (30 Micron)
- W50W, Polypropylene String Wound Sediment Filter Cartridge, 50 Micron (2 Pack)
- W5W, Polypropylene String Wound Sediment Filter Cartridge, 2 Pack (5 Micron)
- W5CP, Pleated Cellulose Polyester Sediment Filter Cartridge (5 Micron)
- W20CLa, Pleated Resin Impregnated Cellulose Sediment Filter Cartridge (Pack of 2)
- WCC, Granular-Activated Coconut Carbon Drinking Water Filter Cartridge (20 Microns)
Specs
–
| Product Type: | Filter Housing |
|---|---|
| Application: | Point of Entry |
| Type: | Specialty High Temperature |
| Max Pressure (PSI): | 125 |
| Max Water Temp (°F): | 160°F |
| Outlet Size: | 3/4" |
| Inlet Size: | 3/4" |
| Connection Type: | NPT |
| Height: | 12-1/8" |
| Diameter (Inches): | 5-1/8" |
| Housing Color: | Red |
