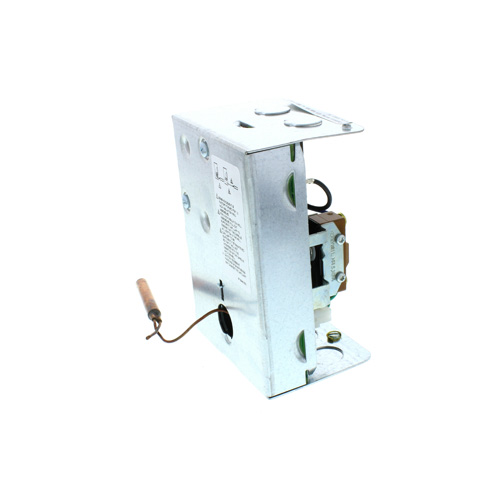

High Limit Vertical Mount Aquastat Relay, 15-Degree (F) Differential, L8148E1265
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$376.06 each
In Stock
Get 129 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (2)
This item replaces: L8148E1182, L8148E1257, 80160349, L8148E1257/U
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
0.25 A @ 0.25 to 12 Vdc, Circulator: 7.4 A @ 120 Vac, Burner: 7.4 A @ 120 Vac, Circulator: 3.7 A @ 240 Vac, Burner: 3.7 A @ 240 Vac, Burner: 0.8 A max @ 24 Vac
Fixed
SPST
Vertical
180°F to 240°F
6-1/8"
Description
–
They Honeywell Aquastat Relay (L8148E1265) provides total convenience and control for a range of installations. This is an immersion-type controller that combines high limit protection with switching relay control of the burner and circulator motors. The Honeywell L8148E1265 Aquastat Immersion Controller Relay is available with horizontal and vertical mounting cases.
Features:
Features:
- High limit opens burner circuit only.
- Includes accessory terminals for adding a remote low limit controller.
- Case available for horizontal or vertical mounting.
- Requires a 24 Vac thermostat with heat anticipator set at 0.2A.
Specs
–
| Frequency: | 60 Hz 60 Hz |
|---|---|
| Application: | High Limit |
| Switch Action: | SPST |
| Electrical Rating: | 0.25 A @ 0.25 to 12 Vdc Circulator: 7.4 A @ 120 Vac Burner: 7.4 A @ 120 Vac Circulator: 3.7 A @ 240 Vac Burner: 3.7 A @ 240 Vac Burner: 0.8 A max @ 24 Vac |
| Electrical Ratings (ALR): | Burner: 44.4 A @ 120 Vac Circulator: 44.4 A @ 120 Vac Burner: 22.2 A @ 240 Vac Circulator: 22.2 A @ 240 Vac |
| Temperature Range (F): | 180°F to 240°F |
| Differential: | Fixed |
| Max Temp Differential: | 15°F |
| Height: | 6-1/8" |
| Width: | 4-3/8" |
| Depth (Inches): | 3-1/8" |
| Operating Humidity: | 0% to 95% (non-condensing) |
| Mount: | Vertical |
| Max Ambient Temp (°F): | 150F with 1.2A 24V Load 77F with 1.4A 24V Load |
| Connection Type: | Quick-Connect |
| Capillary Length: | 4-1/2" |
| Anticipator Rating: | 0.2 A |
| Voltage: | 120v |
| Max Pressure (PSI): | 255 (Immersion Well) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Voltage
CURRENT ITEM
High Limit Vertical Mount Aquastat Relay, 15-Degree (F) Differential, L8148E1265
SKU: L8148E1265
(136)
120v
You May Also Need
Product Reviews
4.89 out of 136 reviews
99% would recommend this product
5 star
91%
4 star
7%
3 star
1%
2 star
1%
1 star
0%
Customer Images
Most Liked Positive Review
I would purchase this product again
Product work in my first attempt. I am an accountant and if I can install this product i think most of the people would not have problem.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
It works but it's noisy.
The old unit on my furnace stopped initiating the burner flame. This unit solved that problem with easy, straight forward installation instructions. However, the relay chatters during the heating cycle. If this shortens the life of the unit, it's a loser. And the chatter has become background noise when I'm in hearing range.
Showing 1-10 of 136 reviews
Works Perfectly
Had to replace a non-working unit. this was a direct replacement that fit perfectly.
Ken
Pittsburgh PA
4 months ago
Verified Buyer
Was this review helpful to you?
worked perfectly, ready to get another one!
Worked as designed, got here fast!
MO
Greensboro NC
6 months ago
Verified Buyer
Was this review helpful to you?
Excellent support
Originally purchased the wrong aquastat, but support worked with me to get the correct unit and provided free return shipping of the wrong part. Really helped sort out a confusing mess of which part to use in a friendly and communicative manner.
Will definitely use SupplyHouse for future parts needs!
DIY homeowner
Philly
6 months ago
Verified Buyer
Was this review helpful to you?
Yes I would buy this product again!
The old aquastat was discontinued. The replacement aquastat worked perfectly no issues on installing it.
Home owner
Erie, Pennsylvania
1 years ago
Verified Buyer
Was this review helpful to you?
???
Can't give a good view of the product yet. Still using heat where it must be installed. But it looks like it will work well.
???
NJ
1 years ago
Verified Buyer
Was this review helpful to you?
would buy again easy install
easy install works good last a long time
old farmer
wyoming
1 years ago
Verified Buyer
Was this review helpful to you?
Supply House to the rescue
Supply House comes to the rescue again.
Whenever my boiler breaks ( usually once a season) 🤣 I know exactly where to go to for parts and crazy next day shipping.
Thank you for the exceptional service. You have a life long customer.
Michigander
SE Michigan. Lake St Clair
1 years ago
Verified Buyer
Was this review helpful to you?
Good quality
Perfect fit. But one day later after original delivery date. Overall I would still keep buying parts from you guys.
Dang73
Chicago,Il
1 years ago
Verified Buyer
Was this review helpful to you?
I would buy again.
like it should
Furnace Clinic
Chicago IL
1 years ago
Verified Buyer
Was this review helpful to you?
Fast and well priced
Had to order this part for my boiler. It arrived fast and saved me a few hundred dollars.
Newbee
Philadelphia, PA
1 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
28 Questions28 Questions
Q: Hi. What is the replacement for a Honeywell L8148E-1166? I'm replacing one with the 1.5 in sensing element. Does the replacement come with the heat conductive paste? Also, what well goes with it? Thanks, Mark
Asked by Mark 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Mark. The L8148E1166 was directly replaced by SKU: L8148E1265, which can be used with 1/2" well SKU: 121371A
Was this review helpful to you?
Q: I have an HB Smith Boiler with a Honeywell L8148E 1000. Will the L8148E 1265 be a suitable replacement.
Asked by Mike 2 years ago
Add your answer
Verified Reply- SupplyHouseHi Mike. The direct replacement for your L8148E1000 is the L8148J1009.
Was this review helpful to you?
Q: i have an L8148E1257 installed currently. The service tech is specifying a replacement as L8148E1265. Whats the difference? Also - when replacing is it an absolute MUST that I use an adapter well?
Asked by jb 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffL8148E1265 has a high limit operating range of 180-240 degrees and includes a molex plug for use with a vent damper. L8148E1257 has a high limit operating range of 140-240 degrees and does not include a molex plug for use with a vent damper. L8148E1257 is still an active part number and if that is what you currently have then that is what would be suggested to replace it with. https://www.supplyhouse.com/Honeywell-L8148E1257-140-240F-AquaStat-Relay-w-Vent-Damper-Connection
Was this review helpful to you?
Q: I need to replace a L8148A1157 on a Weil Mclain oil boiler. It is a vertical mount, 120v circulator, 120V burner control with a 15 degree differential. Can this be used?
Asked by Mike H. 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffThe honeywell L8148A1017 comes up as the cross reference part #, for your original L8148A1157.
Was this review helpful to you?
Q: I need to replace my Honeywell aquastat relay. The only part number it gives me L8148E what is the direct replacement?
Asked by Mike 10 years ago
Add your answer
Verified Reply- Supplyhouse StaffThe L8148E is an incomplete part #, the 4 digits after the "E" should be on the base of the aquastat itself not the cover.
Was this review helpful to you?
Q: I need to replace a honeywell aquastat relay l8148e 1034. If I'm not mistaken, this part is obsolete. Is this considered a replacement? If not, which model is?
Asked by Vitoliciois 10 years ago
Add your answer
Verified Reply- L8148E1299 is the direct replacement.
Was this review helpful to you?
Q: I have a L8148E1216 Aquastat, does the new one come with the grease and do i need anything else.
Asked by Alex 10 years ago
Add your answer
Verified Reply- Supplyhouse Staffnot it doesn't include the heat paste.
Was this review helpful to you?
Q: is this the correct replacement for my old L8148E aquastat relay?
Asked by Rod 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffWe would need the 4 digits after the "E" to confirm the correct replacement.
Was this review helpful to you?
Q: I have a very old gas boiler with a Honeywell L8148E (no additional 4 digits) aquastat which gets the water to boiling, despite being at the lowest temp setting, causing my boiler to clank. Which L8148E would be the proper replacement for my system that has 2 low volt wires from the bank of zone valves, L1, L2, a 120v circulator pump, and 2 low volt wires to the gas valve? There is no damper control.
Asked by Fixitfox 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffPlease contact customer service with the full model and serial information of the unit the Aquastat is on for assistance in selecting replacement parts. The phone number is 1-888-757-4774.
Was this review helpful to you?
Q: Does the L8148E-1265 come with a molex connector for the automatic Damper?
Asked by Meterman110 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffYes, it does.
Was this review helpful to you?
