Note: Full flange-to-flange three-year warranty on all 00 Series circulators.

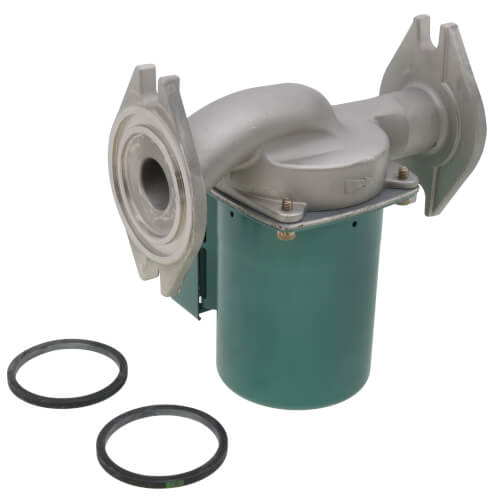

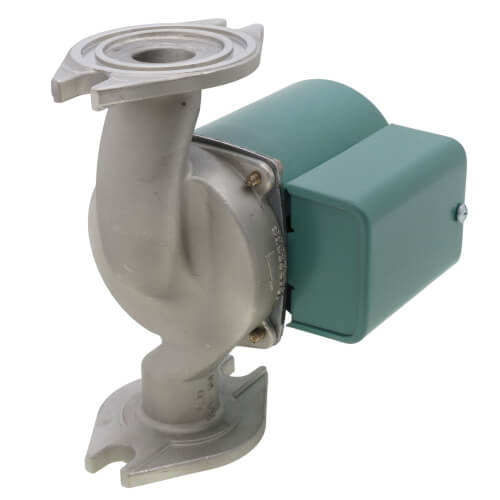

The Taco Model 008 Cartridge Circulator is designed for a wide range of residential and light commercial, higher-head water circulating applications. Available in cast iron or stainless steel construction. Stainless Steel can be used in higher-head heat recovery, water source heat pumps, open-loop solar heat and domestic water recirculation systems. Unique, replaceable cartridge contains all of the moving parts so you can service it easily instead of replacing the entire unit. Compact, direct-drive, low-power consumption design is ideal for high efficiency jobs.
Performance Data Flow Range: 0-14 GPM Head Range: 0-16 Feet Minimum Fluid Temperature: 40 degrees F (4 degrees C) Maximum Fluid Temperature: 230 degrees F (110 degrees C) Maximum Working Pressure: 125 PSI Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged, 3/4" Sweat
Features Standard High Capacity Output-Compact Design Quiet, Efficient Operation Unique Replaceable Cartridge Design-Field Serviceable Direct Drive-Low Power Consumption Self-Lubricating No Mechanical Seal Unmatched Reliability --Maintenance Free Universal Flange-to-Flange Dimensions Optional Sweat Connections
Typical Applications Hydronic Heating Radiant In-Floor/Panel Heating Closed-Loop Solar Heating Systems
Replacement Parts List:
Casing O-Ring: 008-005RP
Flange Gasket Set: 007-007RP
Capacitor or PC Board: 007-002RP
Cartridge Assembly Complete: 008-045RP
Max Pressure (PSI):
Flanged x Flanged
Flow Range (GPM):
Max Flow (GPM):
Max Head (Ft):
Head Range (ft.):
Temperature Range (F):
40°F to 230°F
