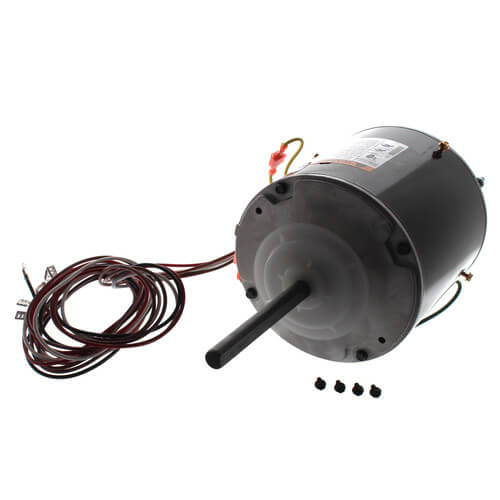

5.6" TEAO PSC Condenser Fan Motor (208-230V, 1/3-1/6 HP, 825 RPM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$171.63 each
In Stock
Get 40 Wed, Jun 17
Order by today, receive Wednesday
MANUALS (1)
This item replaces: 8104-010
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
825 RPM
Reversible
1/3 - 1/6 HP
5.6" Diameter
Description
–
Residential and commercial condensing unit fan motors to meet manufacturer's requirements.
Features:
Features:
- Extended Studs
- 36" Leads
- Hubless Lead End
- Drain Holes Both Ends
- Reversible Rotation
- Designed for use with 370v Capacitors
- Continuous Duty
- Automatic Reset Thermal Overload Protector
- Bearings have All Angle Thrust System
- 140 F (60 C) Ambient
- Class B Insulation
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Voltage: | 208/230V |
| Horse Power: | 1/3 - 1/6 |
| RPM: | 825 |
| Phase: | 1 |
| Diameter (Inches): | 5.6" |
| Rotation: | Reversible |
| Enclosure Type: | Totally Enclosed Air Over (TEAO) |
| Frame: | 48Y |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
You May Also Need
Product Reviews
4.5 out of 2 reviews
100% would recommend this product
5 star
50%
4 star
50%
3 star
0%
2 star
0%
1 star
0%
Showing 1-2 of 2 reviews
Fav brand of motor
great type of motor, all rescue motor
Tony hvac
MD
4 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Worked great for Trane XR14
This was a great deal as compared to buying a replacement from Trane for my aging heat pump. I had a very audible buzzing coming from the old fan while running and it would spin at about half speed for a few minutes before stopping. The only issue I had (which resulted in a star getting knocked off) is that I had to reverse the bolts holding the motor casing together so that the motor housing would mount flush against the fan grill. There was not any paper instructions in the box and the QR code was essentially useless. The motor housing has a diagram as to which connection to use in order to connect to capacitor and low speed. You won't end up using all of the wires and will cut and terminate them safely.
AW
Travelers Rest, SC
5 years ago
Verified Buyer
