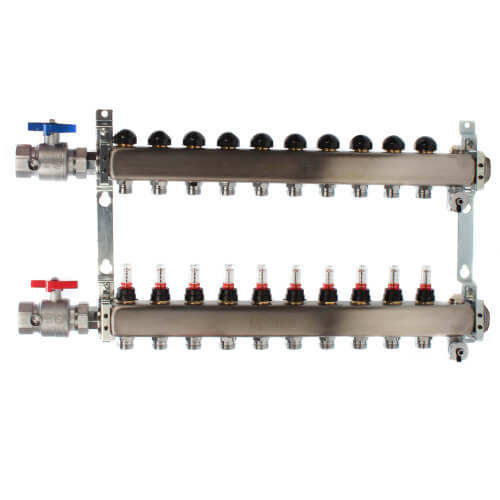

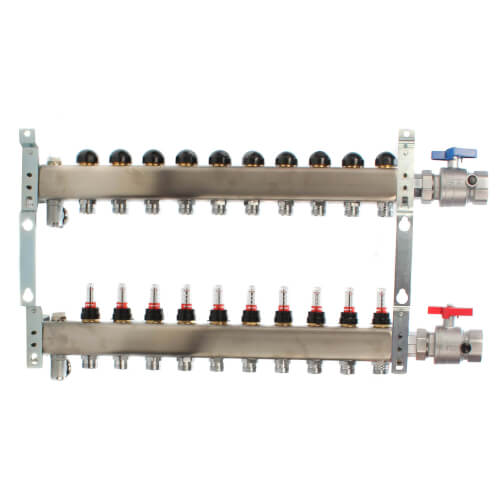

10-Loop 1-1/4" Stainless Steel Radiant Heat Manifold Assembly w/ Flow Meter
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,044.26 each
In Stock
Get 6 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (4)
This item replaces: A2611000
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
PEX Compression
10
Stainless Steel
PEX
10 Year Warranty
14 MAX GPM
Description
–
The Stainless-steel Manifold Assembly with flow meter comes fully assembled
and ready for installation. Use the included flow meters located on the supply
manifold to balance the loops across the manifold. The return manifold comes
equipped with isolation valves for easy loop isolation. For multiple zoning on the
manifold, the black caps are removed and replaced with Uponor Thermal

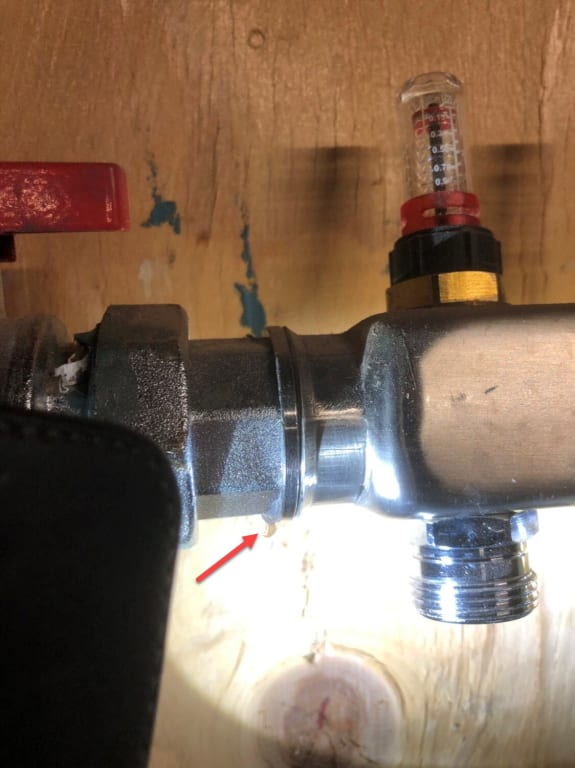

Actuators. The manifold body ends have R32 union connections and the loop
outlets have R20 male threads. The included manifold supply and return ball
valves come with an R32 x 1" NPT connection.
Features:
PEX Loop Fitting Assemblies Options
Features:
- 1" and 1-1/4" manifold offering
- Competitively priced metal alternative
- Corrosion-resistant, stainless-steel barrel
- NPT-threaded ball valve for easy, cost-effective transition
- Balancing and isolation valves for complete loop isolation
- Compatible with all glycols used in radiant heating and cooling systems
- Integrated, full-port ball valves with temperature gauges
- Integrated flow meters for simple system balancing
- Temperature/Pressure ratings:
- 68°F (20°C) at 145 psi
- 158°F (70°C) at 87.4 psi
- 194°F (90°C) at 43.8 psi
- Pre-assembled and ready to install right out of the box
PEX Loop Fitting Assemblies Options
- A4020313: 5/16" PEX to R20 Loop Fitting Assembly
This fitting will connect 5/16" PEX to a loop of the Manifold without requiring the use of a PEX Tool. - A4020375: 3/8" PEX to R20 Loop Fitting Assembly
This fitting will connect 3/8" PEX to a loop of the Manifold without requiring the use of a PEX Tool. - A4020500: 1/2" PEX to R20 Loop Fitting Assembly
This fitting will connect 1/2" PEX to a loop of the Manifold without requiring the use of a PEX Tool. - A4020625: 5/8" PEX to R20 Loop Fitting Assembly
This fitting will connect 5/8" PEX to a loop of the Manifold without requiring the use of a PEX Tool.
ProPEX Loop Fitting Assemblies- Q4020375: 3/8" ProPEX to
R20 Loop Fitting Assembly
This fitting will connect 3/8" PEX to a loop of the Manifold but requires a ProPEX Expansion Tool to make the connection. - Q4020500: 1/2" ProPEX to
R20 Loop Fitting Assembly
This fitting will connect 1/2" PEX to a loop of the Manifold but requires a ProPEX Expansion Tool to make the connection. - Q4020625: 5/8" ProPEX to
R20 Loop Fitting Assembly
This fitting will connect 5/8" PEX to a loop of the Manifold but requires a ProPEX Expansion Tool to make the connection. - Q4020750: 3/4" ProPEX to
R20 Loop Fitting Assembly
This fitting will connect 3/4" PEX to a loop of the Manifold but requires a ProPEX Expansion Tool to make the connection.
Optional Installation Accessories:
Loop End Cap
- A2080020: Manifold Loop End Cap
These allow you to cap off a loop of the manifold if it will not be used.
- A3030524: Two-Wire Thermal Actuator For Stainless-Steel Manifold
If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.
- A3023522: Thermal Actuator, Four-Wire
The four-wired version of the above actuator.
- Q4020375: 3/8" ProPEX to
R20 Loop Fitting Assembly
Specs
–
| Number of Outlets: | 10 |
|---|---|
| Type: | Manifold |
| Material: | Stainless Steel |
| PEX Size: | 3/8" 5/16" 1/2" 5/8" |
| Supply Thread: | R32 |
| Loop Thread: | R20 |
| Application: | Heating |
| Fitting System Compatibility: | PEX Compression |
| Tubing Compatibility: | PEX |
| Warranty: | 10 Year |
| Test Pressure (PSI): | 145 psi (max water) 43.8 psi (max water) 87.4 psi (max water) |
| Max Flow (GPM): | 14 |
| Flow Capacity (Cv): | 1.1 |
| Max Operating Pressure: | 145 psi at 68°F 43.8 psi at 194°F 87.4 psi at 158°F |
| Features: | w/ Visual Flow Meters |
