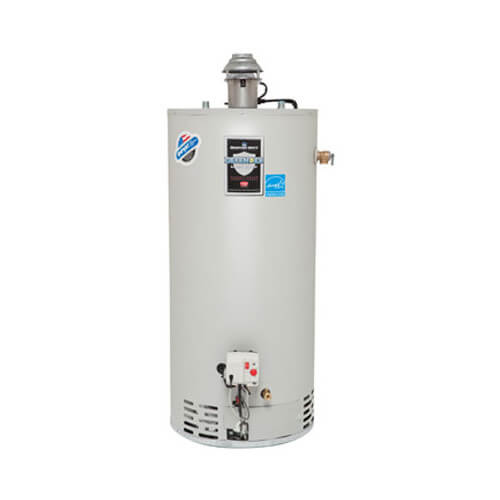

50 Gallon - 40,000 BTU Defender Safety System Damper Atmos. Vent High EF Energy Saver Residential Water Heater (Nat Gas)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$1,823.26 each
Backorder
Get it Wed, Aug 5 - Fri, Sep 4
MANUALS (7)
This item replaces: D-4-504S6FBN
'/%3E%3C/svg%3E){kind=small}
Lift Gate
–
This product weighs 181 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Natural Gas
Atmospheric
6 Year Limited Tank/ 6 Year Limited on Component Parts Warranty
50 Gallons
63.5" Height
Yes
Description
–
Rebates:
You may be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about rebate programs that apply to you. Bradford White Rebate Center
Overview
This model features an automatic flue damper that helps to reduce stand-by heat loss. The flue damper, combined with additional insulation and heat traps, helps these units achieve the highest energy factor (EF) rating of Bradford White's atmospheric vent models. These models qualify for the current Energy Star EF requirement and for the September 1st, 2010 EF requirement, as well as most utility company rebate programs.
Features
You may be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about rebate programs that apply to you. Bradford White Rebate Center
Overview
This model features an automatic flue damper that helps to reduce stand-by heat loss. The flue damper, combined with additional insulation and heat traps, helps these units achieve the highest energy factor (EF) rating of Bradford White's atmospheric vent models. These models qualify for the current Energy Star EF requirement and for the September 1st, 2010 EF requirement, as well as most utility company rebate programs.
Features
- ENERGY STAR® Qualified - These models qualify for the current January 1st, 2009 EF requirement and future September 1st, 2010 EF requirement, as well as most utility rebate programs.
- Automatic Flue Damper - Reduces stand-by heat loss, resulting in less gas consumption, higher energy factor ratings and improved overall efficiency.
- Honeywell Self Diagnostic Electronic Gas Control - Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot. This results in savings of pilot gas during stand by periods (120 V.A.C.).
- Enhanced Performance - Proprietary algorithms provide enhanced First Hour Delivery ratings and tighter temperature differentials.
- Advanced Temperature Control System - Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate temperature water temperature levels.
- Intelligent Diagnostics - An exclusive green LED light prompts the installer during start-up and provides fifteen different diagnostic codes to assist in troubleshooting.
- Pilot On Indication - Flashing green LED provides positive indication that pilot is on.
- Compatible With Optional Accessory Packages- Performance Package, Protection Package and Inlet Shut-Off Valve Packages.
- Advanced ScreenLok® Technology Flame Arrestor Design - Flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater.
- Flammable Vapor Sensor - Electronic sensor prevents burner operation if flammable vapors are detected.
- Resettable Thermal Switch - Proven and reliable bimetallic switch prevents burner and pilot operation in case of ongoing flammable vapor burn inside of the combustion chamber or restricted air flow.
- Maintenance Free - No regular cleaning of air inlet openings or flame arrestor is required under normal conditions.
- Sight Window - Offers a view into the combustion chamber to observe the operation of the pilot and burner.
- Factory Installed Hydrojet® Total Performance System - Cold water inlet sediment reducing device helps prevent sediment build up in tank. Increases first hour delivery of hot water while minimizing temperature build up in tank.
- Vitraglas® Lining - Bradford White tanks are lined with a exclusively engineered enamel formula that provides superior protection from the highly corrosive effects of hot water. This formula (Vitraglas®) is fused to the steel surface by firing at a temperature of over 1600ºF (871ºC).
- 2" Non-CFC Foam Insulation - Covers the side and top, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies and jacket rigidity.
- Pedestal Base.
- Water Connections - 3/4" NPT factory installed true dielectric fittings.
- Factory Installed Heat Traps.
- Protective Magnesium Anode Rod.
- 3x4 "Snap Lock" Draft Diverter - Allows either 3" or 4" vent connections.
- T&P Relief Valve - Installed.
- Low Restriction Brass Drain Valve - Durable tamper proof design.
Specs
–
| Intended Household: | 3-4 Person |
|---|---|
| Application: | Plumbing |
| Fuel Type: | Natural Gas |
| Capacity (Gallons): | 50 |
| BTU Input: | 40000 |
| Vent Type: | Atmospheric |
| Features: | Energy Star Qualified |
| Recovery Efficiency: | 80% |
| Vent Size: | 3 x 4 |
| Connection Type: | Threaded |
| Water Connection: | 3/4" |
| Height (Inches): | 63.5" |
| Diameter (Inches): | 22" |
| Weight (lbs): | 172 lbs |
| Depth (Inches): | 26-1/8" |
| Warranty: | 6 Year Limited Tank/ 6 Year Limited on Component Parts |
| 1st Hour Delivery (Gallons): | 86 |
| Energy Factor: | 0.67 |
| Energy Star Rated: | Yes |
| Max Altitude (Feet): | 2000 |
