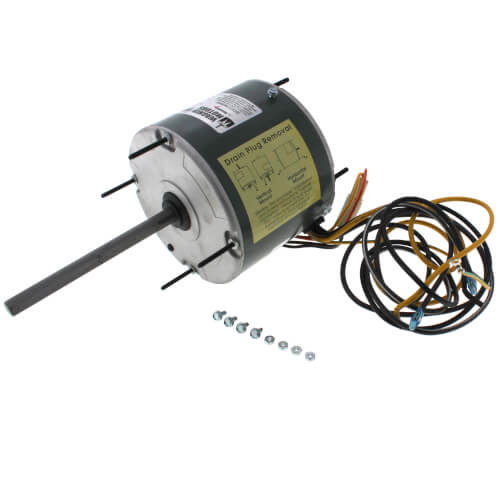

1/3 HP, 208-230 VAC Condenser Fan Motor
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$97.38 each
In Stock
Get 49 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
CW/CCW
1/3 HP
Shaft up, shaft down, or belly band
2.8 Amps
Description
–
- Installs with all Standard 48 Frame Mounting Brackets
- Standard Shaft Length, Diameter, and Flats
- Drain Holes with Plugs in Both End Plates
- Automatic Thermal Overload Protector
- Standard 48 Frame Motor Casing Size
- Low Power Consumption
- 60 C Ambient Design
- Electrically Reversible
- Continuous Air Over
- Class B Insulation
- Quiet Operation
- Extended Studs
- 30" Leads
- Color Packaging
Bright, colorful, easy to read packaging removes confusion about motors. The distributor can easily identify the stock of motors on the shelf. The application, voltage, and horsepower of a motor are visible at a glance. - Capacitor Size
The appropriate size 370 VAC run capacitor is noted on every motor carton. - Innovative Packaging
A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft, and mounting bolts during shipment. (See Image #2) - Larger Diagram
An extra large wiring diagram is supplied on the motor itself, on the motor carton, and also in the installation and safety instruction sheet. This large wiring diagram makes it very easy to read. - Cross Reference
For your convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton. - Large Label
Informative product label contains the motor model number in large type. The UPC code is also printed on every motor label. - Extended Bolts
Extended mounting bolts provide for easier installation in cramped spaces. With the longer bolts, the installer is able to more easily start the threaded mounting nut. - Extended Wires
Wagner motor wires are thirty inches long. The added length makes it easier for the contractor to install the new motor. - Wire Stripping
Partial stripping leaves the insulation on the motor connection wire. This protects the stranded copper wire and prevents damage to individual strands. - Insulated Disconnects
Run capacitor connections are insulated for increased safety. Flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided.
Specs
–
| Motor: | Permanent Split Capacitor |
|---|---|
| Horse Power: | 1/3 |
| Voltage: | 208/230V |
| Amperage: | 2.8 |
| RPM: | 1075 |
| Speeds: | 1 |
| Capacitor: | 370 VAC |
| Hertz: | 60 |
| Mount: | Shaft up, shaft down, or belly band |
| Insulation Class: | B |
| Bearings: | Sleeve |
| Finish: | Grey-green powdercoat |
| Frame Size: | 48 |
| Rotation: | CW/CCW |
| Temperature Rating: | 60 deg C / 140 deg F |
| Lead Wire Length: | 30 inches |
| Lead Wire Gauge: | #18 AWG |
| Motor Diameter: | 5.59" |
| Motor Length: | 10.41" |
| Shaft Diameter: | 1/2" |
| Shaft Flats: | One flat |
| Weight (lbs): | 12.1 lbs |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back on Sunday to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
You May Also Need
Product Reviews
4.5 out of 10 reviews
90% would recommend this product
5 star
80%
4 star
10%
3 star
0%
2 star
0%
1 star
10%
Most Liked Positive Review
Good Motors At A Decent Price
I Have Installed 100's Of These Over The Years And They Are Great Motors. Pro Tip: Don't Size Your Motor By HP, Size Them By The Amp Draw.
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Failed In 8 Months
Bad Bearing Failed In 8 Months. It Was Professionaly Installed. Not Recommended For HVAC Applications.
Showing 1-10 of 10 reviews
Good Motors At A Decent Price
I Have Installed 100's Of These Over The Years And They Are Great Motors. Pro Tip: Don't Size Your Motor By HP, Size Them By The Amp Draw.
Dave
Tulsa, Oklahoma
1 years ago
Was this review helpful to you?
Failed In 8 Months
Bad Bearing Failed In 8 Months. It Was Professionaly Installed. Not Recommended For HVAC Applications.
CJ
Dallas
2 years ago
Was this review helpful to you?
The perfect one
Even comes with 4 small zip ties for the wiring harness
JP
Palm Coast FL
2 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product again and again for sure
Great price great quality and VERY important in the times we are living FAST SHIPPING
Sofia
Tampa, Fl
5 years ago
Verified Buyer
Was this review helpful to you?
Quality Product
Haven't use it, but looks good
GBR
Baton Rouge, LA
6 years ago
Verified Buyer
Was this review helpful to you?
Maximum value, minimum price.
Does the job and compares with motors selling for 1.5 times as much
Pipiripau
Falcon, Tx
11 years ago
Verified Buyer
Was this review helpful to you?
reorder when needed
Easy installation, replaced burned out unit, functioning as expected
break it now
houston tx
11 years ago
Verified Buyer
Was this review helpful to you?
I would buy this product Again..
This motor worked great!!
Patrick
Fort Myers, Fl.
12 years ago
Verified Buyer
Was this review helpful to you?
1\ 3rd force condenser fan.
Easy to install. Wiring was easy. Runs smooth and quiet.
Egore
St. Petersburg, Florida.
13 years ago
Verified Buyer
Was this review helpful to you?
Just what I need just like the picture n
Very quiet run smooth easy to in stall happy camper
Do it your self worker
Charlotte nc
14 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: How do I tell what size condensing unit I have?
Asked by Manda 14 years ago
Add your answer
-
Somewhere in the model number or in the middle of the serial number there will be a 3-digit number. It will be one of these numbers: 024 – 2 ton 030 – 2.5 ton 036 – 3 ton 042 – 3.5 ton 048 – 4 ton 060 – 5 ton Good luck.
Was this review helpful to you?
Q: Does this motor come with the capacitor or is that extra?
Asked by Tim 14 years ago
Add your answer
- Another PexSupply Customer
The capacitor must be purchased separately.
Was this review helpful to you?
