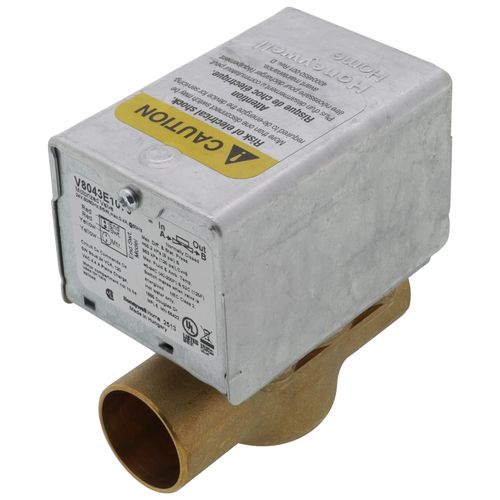

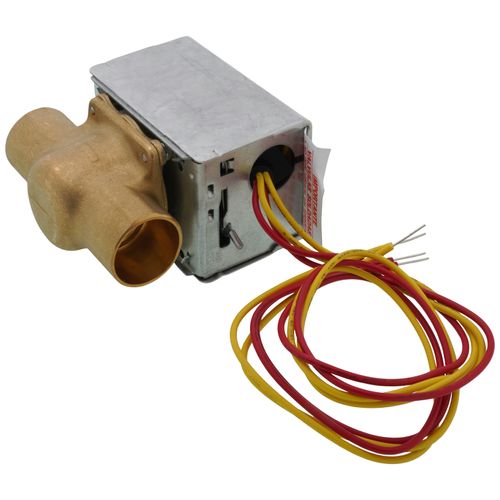

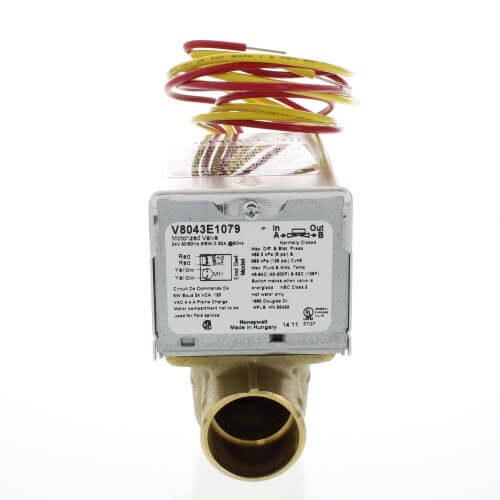

1" Sweat Connection Zone Valve, Normally Closed, 8 Cv (24v)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (2)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Specifications
- 24V 1 in. Sweat Connection Low Voltage Motorized Zone Valves
- Application: Hydronic Control
- Connection Type : Sweat
- Pipe Size: 1"
- Body Pattern: Two-way, Straight-through
- Capacity: 8 Cv
- De-Energized Position: Normally Closed
- Maximum Close-off Pressure (psi): 8 psi
- Fluid Temperature Range: 200 F
- Electrical Connections: 18 in. leads
- Power Consumption: 7.7 VA
- Nominal Timing (sec, min): 15 Seconds
- Valve Action: Spring return to close
- Maximum Ambient Temperature (F): 125F
- Dimensions: 4 in. high x 3 11/16 in. wide x 2 3/8 in. deep
- Auxiliary End Switch: SPST
- End Switch Rating: 50 VA pilot duty @ 24 V
- Type: 2 position
- Static Pressure: 125 psi
- Voltage: 24v
- Frequency: 60 Hz
- Manual Opener: Yes
Features
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.

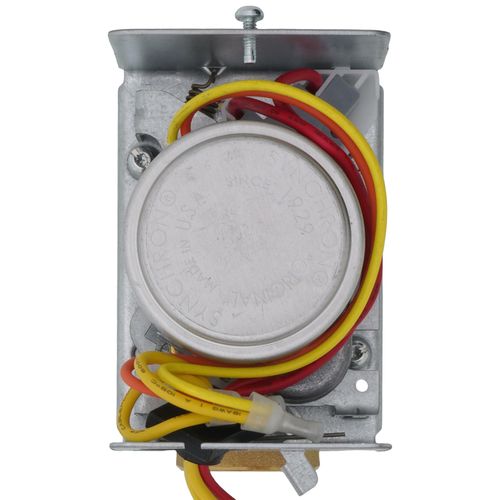

- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
- Actuator motor may be replaced without removing the valve body or draining the system.
Specs
| Application: | Zoning |
|---|---|
| Size: | 1" |
| Connection Type: | Sweat |
| Voltage: | 24V |
| Position: | Normally Closed |
| Flow Capacity (Cv): | 8 |
| Material: | Brass |
| Wiring: | 18" Leads |
| Body Pattern: | 2-Way Straight-Through |
| Hertz: | 60 50 |
| Max Ambient Temp (°F): | 125°F |
| Width (Inches): | 3-1/2" |
| Max Close-Off PSI: | 8 psi |
| Depth (Inches): | 2-3/8" |
| Height: | 4" |
| Temperature Range (F): | 50°F - 200°F |
| Max Temp (F): | 200°F |
| Min Temp (F): | 50°F |
| Valve Action: | Spring Return to Close |
| Power Consumption: | 7.7 VA |
| Static Pressure: | 125 psi |
| Nominal Timing: | 15 Seconds |
| End Switch: | Yes |
Questions?
Compare Similar Products
You May Also Need
3 Replacement Parts
Need help finding a replacement part?
Product Reviews
Most Liked Positive Review
Easy replacement
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Buyer Beware.
Excellent replacement
I would buy this product again.
Great
yes, I would buy this product again.
Need to have a couple on hand.
Good so far.
Easy to do
3/4" Sweat Zone Value N/C, 8Cv (24V) performs as expected
Valve for hot water heating
Very professional service
Product Q&A
6 QuestionsQ: Is there an advantage to useing the V8043E1061 over the V8043E1012 in residesial heating application?
Asked by Charlie 8 years ago
Add your answer
Verified Reply- Hello Charlie, The -1012 looks to have a higher pound maximum closeoff pressure (20 lbs. vs. 8 lbs.), but aside from that, there is not too much of a difference.
Q: I have three valves. One doesn't open and 'hums' witha static like hum when it calls to open. Does this sound like a motor that needs to be replaced?
Asked by Jake 12 years ago
Add your answer
Test the voltage at the valve, if you have the correct voltage then you need to replace the head. If voltage is bad you have an issue with the furnace electronics. Sent from my iPhone
I would try to open the valve manually, if it will open, then the motor is probably bad, and needs replacing. If the valve is stuck, then probably the whole thing
Q: I have 7 of the V8043E1061 valves installed 3 out of these are stuck open/not working. The queston I have - can the "guts" of the valve be installed without removing the old housing and having to re-sweat the new valve in.
Asked by gkbike 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can do this. Part 40003916-026 is the entire replacement power head, 802360JA is the motor, and 272742A is the replacement rubber ball/o-ring set.
Disclosure, I am not a plumber. I replaced two old zone valves with essentially the same model. I left the pipes intact and only replaced the box/motor. There were shutoffs on either side of the values which made this simple. I have had no issues in 9 months.
The answer to your question is yes, but it is probably the operator rather than the internal parts. I have hundreds of these valves in service and failure is very rare. Is it possible that you are exceeding the max pressure differential of the valve with too big of a pump? Bigshrub
You should be able to buy the "guts" only and install. Easy if you put shut off' in before and after the valve. Are the current valves stuck open or do you have the manual override locked in? Sent from my iPhone
Q: I am a home owner. I have a different type of zone valve that failed. I bought a Honeywell V8043E1061. It does not match the 2 wire installation of the previouse zone valve. I have a 24volt system. There are 4 wires coming out of the new zone valve. Does anyone have a wiring diagram that I can have? Or can I get one on line.
Asked by Kelly 14 years ago
Add your answer
2 wires are for the motor. 2 wires are for a microswitch that closes when the valve is open. If you take the cover off, it is fairly obvious which wire go to which device.
The 4 wires are 2 for the motor 2 for an end switch. You should be able to disregard the 2 for the end switch. For a wiring diagram go to honeywells website. If I remember they are color coded for different items.
Q: what does the maximum close off pressure mean. Will it work on a system with 15psi, such as a normal home heating system
Asked by bonus honus 14 years ago
Add your answer
Yes. The 15 lbs. Is the pressure on the system and would appear no each side of the valve, thus the valve differential pressure is zero. The close off pressure is what the circulation pump is producing. Typically very low. Lost somewhere in America.
How much pressure the valve can hold when closed and Yes.
Yes it will work on a "normal" 15 PSI system, as long as the differential pressure across the valve is less than 8PSI, when closed. Fred () _ () _ () _ () .
It means the maximum flow of water through the valve when it will still be able to function normally. This valve is intended for what you describe, a normal hot water heating system.
Q: I need to replace the actuator motor for this unit...what is the part number?
Asked by cj 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou need part number 802360JA ( http://www.pexsupply.com/Honeywell-802360JA-Replacement-Motor-for-V8043-Zone-Valves-8634000-p ).
