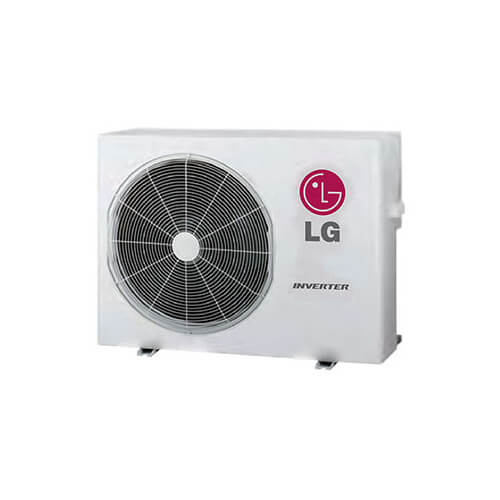

LMU24CHV has been discontinued
Discontinued March 18, 2022
This product was discontinued by the manufacturer.
MANUALS (7)
This item replaces: LMU246HV, LMU247HV, LMU245HV
'/%3E%3C/svg%3E){kind=small}
Direct Replacement:
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
–
20000 BTUs
24000 BTUs
1/4"
3/8" SL
21.7 Rating
Yes
Description
–
This R410A unit is no longer manufactured as per the AIM Act of 2020. While replacement parts are available for repairs, a new unit will require replacing the entire system to support the new A2L R32 refrigerant.
Please visit our Mini Split Air Conditioners for system selection or reach out to Customer Care Team Contact Us for assistance.
LG Multi F whole-home comfort systems provide powerful, efficient heating and cooling with up to eight indoor units operating off a single outdoor unit. In fact, most combinations are ENERGY STAR® Certified. Individual room temperature control with low operating cost are at your fingertips with LG Multi F.
Installation is easy and does not require major renovations – the pipes connecting your outdoor unit to the indoor units are small and easy to run throughout your house. Your contractor can usually install a whole home system in just a few days start-to-finish and adding an additional indoor unit down the road is simple and cost-effective. Using three or more indoor units is more cost-effective and uses less space than installing three individual single-zone systems.
Product Features:
- Inverter variable-speed compressor on the outdoor unit for energy-saving operation
- Defrost / De-icing capabilities
- Restart delay of three minutes
- Self diagnosis capabilities
- Soft start reduces power surges to electrical systems
- Auto operation and auto restart operation
- Operates down to 14°F in cooling mode
- Operates-4°F to 64°F in heating without additional low ambient controls
- R410A refrigerant
- Nominal Cooling Capacity : 20,000 (Btu/h)
- Nominal Heating Capacity : 24,000 (Btu/h)
- Refrigerant Charge (lbs) : 3.97
- Liquid Line (OD) : 1/4" x 3
- Vapor Line (OD) 3/8" x 3
- Max Total Piping² : 246.1 ft
- Max ODU to IDU Piping: 82 ft
- Piping Length (no add'l refrigerant, ft): 73.8
- Max Elevation between ODU and IDU: 49.2 ft
- Max Elevation between IDU and IDU: 24.6 ft
- Refrigerant Type R410A
- Refrigerant Control EEV
- Sound Pressure (Cool/Heat) +/-3 dB(A) 49/52
- Net Unit Weight (lbs) : 100
- Shipping Weight (lbs) : 108
- Heat Exchanger Coating GoldFin
- Min Number of Indoor Units: 2
- Max Number of Indoor Units: 3
Specs
–
| Type: | Multi-Split |
|---|---|
| Product Type: | Outdoor Unit |
| Cooling Capacity (BTU): | 20000 |
| Heating Capacity (BTU): | 24000 |
| Energy Star Rated: | Yes |
| Number of Zones: | 3 |
| Application: | Cooling |
| Voltage: | 208/230V |
| Hertz: | 60 |
| Phase: | 1 |
| Refrigerant Type: | R-410A |
| Liquid Line: | 1/4" |
| Suction Line: | 3/8" |
| Width (Inches): | 34-1/4" |
| Depth (Inches): | 12-19/32" |
| SEER: | 21.7 |
| HSPF: | 9.7 |
| Warranty: | 7 Year (Compressor)/5 Year (Parts) |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our CalculatorYou May Also Need
45 Replacement Parts
Coil Assembly, Reverse, EAP64467709
SKU: EAP64467709
LGThermistor (CN-DISCHARGE), EBG61406002
SKU: EBG61406002
LGTube Assembly, Condenser (Out), AJR73768803
SKU: AJR73768803
LGCompressor Set, TBZ37955601
SKU: TBZ37955601
LGBarrier Assembly, Outdoor, AAM73491203
SKU: AAM73491203
LGCover Assembly, Control (Outdoor), ACQ36712504
SKU: ACQ36712504
LGPanel Assembly, Front (Outdoor), AGL74852701
SKU: AGL74852701
LGValve, Expansion Body, 5220A90013E
SKU: 5220A90013E
LGValve, Service, 5220A20029P
SKU: 5220A20029P
LGTube Assembly, Reverse, AJR73786307
SKU: AJR73786307
LGOrifice, 4948A20005A
SKU: 4948A20005A
LGCondenser Assembly, Bending, 5403A10013N
SKU: 5403A10013N
LGTube Assembly, Condenser (In), AJR73786401
SKU: AJR73786401
LGPanel Assembly, Front (Outdoor), AGL74852708
SKU: AGL74852708
LGFuse, Time Delay, 0FZZTTH001B
SKU: 0FZZTTH001B
LGThermistor (CN-MID), EBG61445905
SKU: EBG61445905
LGPanel Assembly, Front (Outdoor), AGL74852706
SKU: AGL74852706
LGThermistor (CN-SUCTION), EBG61405902
SKU: EBG61405902
LG
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
3.73 out of 11 reviews
70% would recommend this product
5 star
55%
4 star
18%
3 star
0%
2 star
0%
1 star
27%
Customer Images
Most Liked Positive Review
Nice unit
Running three zones created some problems getting all contro wires into the unit. Finally fabricated a custom receiver for the three strain reliefs and ran the poet feed through the side of the unit.
VS
Most Liked Negative Review
I am forced to buy this product again and again
I have had problems with this unit for the past 3 years. After first year of use - leak somewhere in the coil. I followed warranty guidelines, hired an LG dealer to perform work and replace parts. The labor to repair costed more than a brand new unit. After repair used for that season (Summer only for AC) and then next spring discovered there was no charge and another leak in coil. This time SupplyHouse sent a new unit at no charge. I used this unit for the summer AC only and now this spring AGAIN no charge. A leak somewhere in the compressor. SupplyHouse current response is to request the parts needed to repair, however, the labor repair estimate I have is $1,200-$2,500. I am still working with them for a better solution. Hopefully we can reach a resolution.
Showing 1-10 of 11 reviews
No Warranty support
I keep having issues with this outdoor unit where the cost of labor will be more than the whole thing so I ordered a new one and it had different issues. Supply house wont help unless LG gives a case number and a Lg tech diagnoses it. Lg won't give a case number because they have no record of it being purchased from a distributor. So now im stuck buying a 3rd unit in less than 2 years (directly from a LG supplier this time so I have an actual warranty) plus all the labor that's not covered. LG just wants your money and will not support you when it breaks.
Trashpile
CO
4 years ago
Was this review helpful to you?
No warranty support.
Bought this to replace previous model that compressor went bad. This one had a ruptured burst disk that leaked out all refrigerant and some other issues where repair work is going to be more than the cost of a new unit. So im purchasing 3 of these in the span of 2 years. Supply house says they wont do anything to help without a LG case number and LG tech diagnosis, LG wont give a case number because it wasn't bought from them and have no record of it being purchased at all. Is supply house not a certified supplier? Anyways just pay a little more upfront and buy from a local company who will then support warranty claims.
Minisplit Graveyard
CO
4 years ago
Verified Buyer
Was this review helpful to you?
Product was great and so was supply house
The product fit my old zones inside the house so I didn't have to change anything just unhook my old unit and hook this one up. The unit is smaller than my old one and extremely quieter. I've had it running non stop for 3 weeks and it's been great. Supply House was very nice and helpful and shipped promptly. The only problem I had was with my local freight, they were behind and took some time to get the product from the freight company but other than that everything was perfect.
Hunter
Jackson, Tn
4 years ago
Verified Buyer
Was this review helpful to you?
Would definitely recommend
Put in my personal home, great units
Charlie
Wapwallopen pa
4 years ago
Verified Buyer
Was this review helpful to you?
I am forced to buy this product again and again
I have had problems with this unit for the past 3 years. After first year of use - leak somewhere in the coil. I followed warranty guidelines, hired an LG dealer to perform work and replace parts. The labor to repair costed more than a brand new unit. After repair used for that season (Summer only for AC) and then next spring discovered there was no charge and another leak in coil. This time SupplyHouse sent a new unit at no charge. I used this unit for the summer AC only and now this spring AGAIN no charge. A leak somewhere in the compressor. SupplyHouse current response is to request the parts needed to repair, however, the labor repair estimate I have is $1,200-$2,500. I am still working with them for a better solution. Hopefully we can reach a resolution.
John
Wisconsin
4 years ago
Was this review helpful to you?
Quiet inside and out
I have two compressor with 3 head each installed a week ago and they are working great. Only hear a faint breeze at low settings. You can easily hold conversation beside outside units unless you crank the temperature settings up 25 degrees which I did just as a test. One remote control can operate any air handler so I put the other remotes away to use as backups. Speaking of remotes, we have two 12k units in our great room and if you are in the right spot it will control both units at same time. We look forward to connecting the units to wifi
Josh
Southern Indiana
5 years ago
Was this review helpful to you?
Excellent ,
We set it all up, then we check to see how many amps it would draw with everything on , running at maximum and we only had a 4 amp draw
Dave
Fly Creek
5 years ago
Verified Buyer
Was this review helpful to you?
Nice unit
Running three zones created some problems getting all contro wires into the unit. Finally fabricated a custom receiver for the three strain reliefs and ran the poet feed through the side of the unit.
Jim @ Incontrol
Weastern Massachusetts
9 years ago
Verified Buyer
Was this review helpful to you?
LG mini split 20k BTU inverter
With my HVAC contractor, I have an install with 2x of the inverters, 1x 12kBTU indoor unit, 1x 9k BTU unit, 4x 7k BTU units. I purchased all the LG products and line sets from Supply House. The technical people were very knowledgeable about sizing the units for my home.
Upon install, there was an issue with both ends of 1 line set, needed to be fixed. When starting the inside units 1 was dead, 1 made a lot of noise. Supply house sent me parts to fix both units, but they shouldn't have needed repaired being brand new.
I like the idea of complete zone control, and they appear to be more energy efficient than my electric baseboard heat. Some are making noise that I haven't troubleshot yet. I think I will like them when all the bugs are worked out, but this isn't an easy exercise.
RT
Dayton, OH
10 years ago
Verified Buyer
Was this review helpful to you?
Nice unit, straight-forward to install
Installed this at my home, with two 12K BTU indoor units. The parts got delivered with a lift gate delivery truck. Everything was complete and in perfect condition. (need to order separately: line set, electric hookup whip, unfused disconnect, line set cover) Installation took me about 2 days. Works perfectly. Very happy.
Rainer
Portland, OR
10 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
2 Questions2 Questions
Q: Can I use this unit to replace LMU247HV?
Asked by Mick 8 years ago
Add your answer
Verified Reply- Hello Mick, Yes, LMU24CHV is the Suggested Alternative to the LMU247HV.
Was this review helpful to you?
Q: What is the SEER rating on this unit?
Asked by Ken 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffThe SEER ratings for these units are not fixed, as it will depend on what indoor units they are connected to.
Was this review helpful to you?
