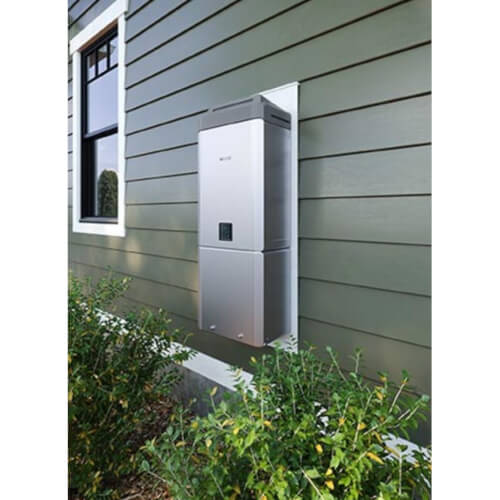

RX160IN 160,000 BTU, Condensing Indoor/Outdoor Tankless Water Heater (Natural Gas)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
Rinnai MIVK-T-LW Water Heater Isolation Valve Kit is no longer provided and must be purchased separately.
Rebates:
This product qualifies for a federal tax rebate of up to $600. Federal Rebate click for more info
In addition to the federal rebate, you may also be eligible for rebates from your local utility company and state. Search your zip code in the link below for information about local rebate programs that may apply to you. Rinnai Rebate Center
Note: Controller Cable accessory no longer comes with this unit, and must be purchased separately if required. Item can be found below in the Related Products section.
With an enhanced combustion design, the Rinnai SENSEI Tankless Water Heater provides a better experience for both users and installers. Like all Rinnai Tankless Water Heaters, it's also vertically integrated. That means all key components are manufactured by Rinnai - to ensure Rinnai quality.
The SENSEI RX160iN condensing tankless water heater from Rinnai is only the size of a small suitcase, uses either Natural Gas or Propane, and can be installed indoors or outdoors using the Versa-Vent accessory. Rinnai SENSEI RX Series tankless water heaters last up to twice as long as tanks and have twice the warranty length. Plus, they save energy by heating water only when it is needed.
Features
- Uniform Energy Factor (UEF): 0.96
- 97% Thermal Efficiency
- Warranty 15 yrs or 12K hours on Heat Exchanger/ 5 years on Parts/ 1 Year on Labor
- 15,000 BTU/H (minimum)
- 160,000 BTU/H (maximum)
- NG AND LP Compatible
- Indoor AND Outdoor compatible with use of RX Series Outdoor Vent Cap RXOVC, purchased separately.
Specifications
- Manufacturer Trade Model Number - U.S.: RX160iN
- Product Depth: 11.4 inch / (291 mm)
- Product Height: 30.11 inch / (762 mm)
- Product Width: 18.5 inch / (470 mm)
- Product Weight: 54 lb / (24.4 kg)
- Gas Type: Natural Gas
- Installation Type: Indoor
- Recirculation Capable: Yes
- Residential ENERGY STAR: Yes
- Uniform Energy Factor (UEF): 0.96
- Domestic Hot Water Flow Rate (Maximum): 9.0 GPM / (34 L/min)
- Wi-Fi Capable: Yes
- SCAQMD Approved: Ultra Low NOx
Specs
| Installation Type: | Indoor/Outdoor |
|---|---|
| Fuel Type: | Propane Natural Gas |
| Product Type: | Tankless Heater |
| Energy Factor: | 0.95 |
| Energy Star Rated: | Yes |
| BTU (Min): | 15000 |
| BTU (Max): | 160000 |
| Flow Range (GPM): | 0.26-6.6 |
| Temperature Range (F): | 98°F to 140°F |
| Max Flow (GPM): | 9 |
| Height (Inches): | 34" |
| Depth (Inches): | 22" |
| Width (Inches): | 15" |
| Warranty: | 15 Year Limited on Heat Exchanger/ 5 Year on Parts/ 1 Year on Labor |
| Application: | Residential |
| Type: | Condensing |
| Flow Rate at 70F Temp Rise (GPM): | 4.4 |
| Flow Rate at 50F Temp Rise (GPM): | 6.2 |
| Flow Rate at 60F Temp Rise (GPM): | 5.2 |
| Flow Rate at 40F Temp Rise (GPM): | 7.7 |
