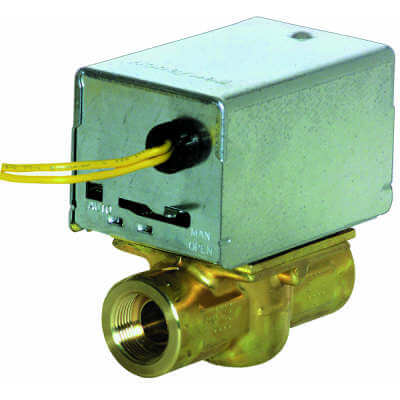

1/2" Inverted Flare Zone Valve, N.C., 20 psi, Spring Return, 3.5 Cv (24V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Straight-Through, 2-Way
Inverted Flare, Sweat Connection
3.5 Cv
1/2"
24V
Normally Closed
Description
–
Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.
Product Feature:
Product Specifications
Product Feature:
- Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
- All models may be installed without disassembling the valve.
- Compact construction for easy installation.
- Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system;
- Actuator motor may be replaced without removing the valve body or draining the system
Product Specifications
- Pipe Size (DN): DN15
- Fluid Temperature Range: 50 F to 200 F
- Electrical Connections: 18" leads
- Power Consumption: 7.7 VA
- Nominal Timing: 15 sec
- Capacity: 3.5 Cv
- Valve Action: Spring return to close
- Dimensions: 4" high x 3-5/8" wide x 2-3/8" deep
- Static Pressure (psi): 125 psi
- Maximum Differential Pressure Ratings (Close-off) (psi) 20 psi
- Materials (Body + Seat): Brass
- Materials (Stem): Stainless Steel
- Materials (Ball Plug): Buna-N (NBR) Rubber Ball
- Materials (Packing O-rings): EPDM O-rings
- Voltage: 24V
- Manual Opener: Yes
- Tradeline Value: Tradeline
Specs
–
| Application: | Zoning |
|---|---|
| Size: | 1/2" |
| Connection Type: | Inverted Flare Sweat |
| Voltage: | 24V |
| Body Pattern: | Straight-Through 2-Way |
| Position: | Normally Closed |
| Flow Capacity (Cv): | 3.5 |
| Used With: | V8043C Series |
| Height: | 4" |
| Used with Valve: | Two-Way |
| Material: | Brass |
| Amperage: | 0.3 |
| Depth (Inches): | 2-3/8" |
| Max Pressure (PSI): | 300 |
| Wiring: | 18" Leads |
| Hertz: | 59 |
| Max Ambient Temp (°F): | 125°F |
| Max Close-Off PSI: | 20 psi |
| Temperature Range (F): | 50°F - 200°F |
| Min Temp (F): | 50°F |
| Max Temp (F): | 200°F |
