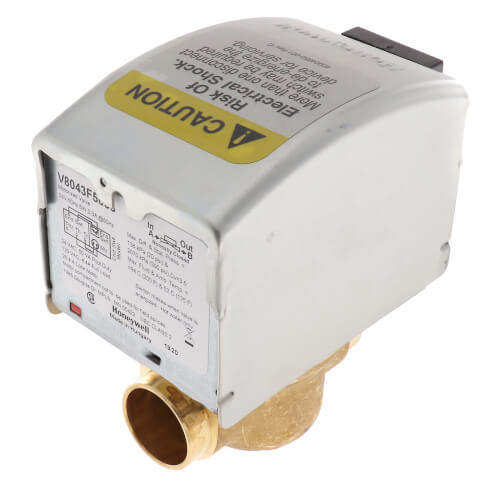

3/4" Sweat Connection Zone Valve, normally closed, w/ screw terminal block connection, 3.5 Cv (24v)

Two-way on-off low voltage valves consist of an actuator and valve assembly for controlling the flow of hot water.

Note: Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.

Features

• All models may be installed without disassembling the valve.
• Compact construction for easy installation.
• Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored.
• Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system.
• "Quick Fit" push button powerhead makes it easy to remove for service.
• Series 5000 replacement powerhead is backward compatible with series 1000 zone valves.
• Innovative motor technology offers silent operation, water hammer resist and longer life.

Specifications

• 24V 3/4 in. Sweat Connection Low Voltage Motorized Zone Valves
• Application: Hydronic Control
• Connection Type : Sweat
• Pipe Size: 3/4”
• Body Pattern: Two-way, Straight-through
• Capacity: 3.5Cv
• De-Energized Position: Normally Closed
• Maximum Close-off Pressure (psi): 20 psi
• Fluid Temperature Range: 200 F Max.
• Electrical Connections: screw terminal block
• Power Consumption: 7.2 VA
• Nominal Timing (sec, min): 15 Seconds
• Valve Action: Spring return to close
• Maximum Ambient Temperature (F): 125F
• Dimensions: 4-3/8 in. high x 3-1/2 in. wide x 2-3/8 in. deep
• Auxiliary End Switch: SPST
• End Switch Rating: 50 VA pilot duty @ 24 V
• Type: 2 position
• Static Pressure: 300 psi
• Voltage: 24v
• Frequency: 60 Hz
• Manual Opener: Yes
