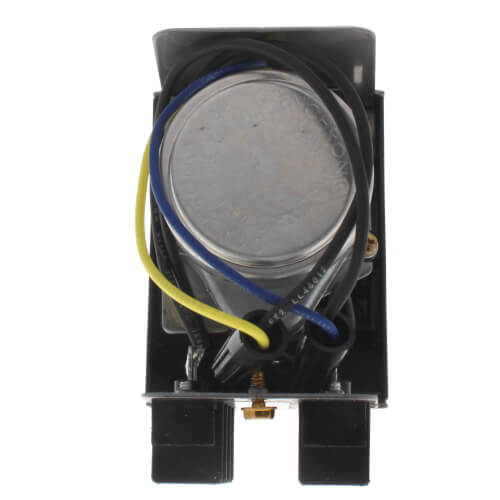

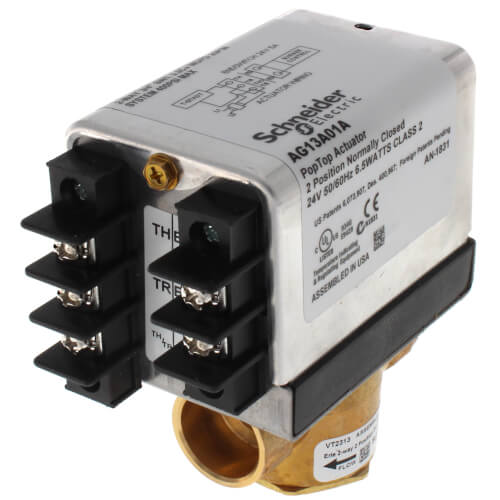

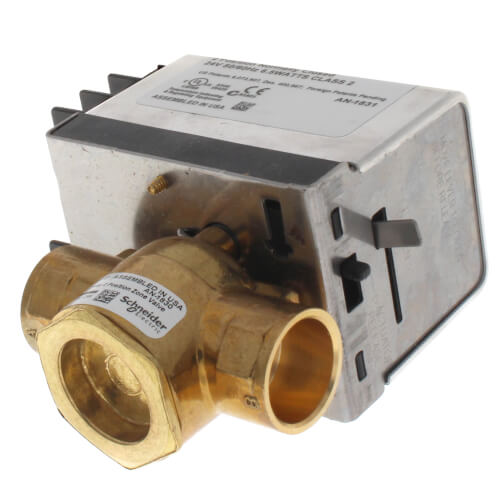

3/4" Sweat 2-Way PopTop Zone Valve w/ Terminal Block & End Switch (24V)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
2-Way
Sweat Connection
3.5 Cv
3/4"
24V
Normally Closed
Description
–
Note: Image may not be exact representation of product.
Erie PopTop Series valve bodies and actuators provide easy installation for a variety of heating and
cooling applications. Valve's actuator can be installed after valve body has been installed onto fan coil, baseboard or air handler.
Features:
Features:
- Direct replacement for all existing two-position PopTop applications
- Hysteresis synchronous motor for long life
- Spring return operation provides a fail-safe
- Valve body rated for 400 psi static pressure
- Available in a variety of voltages
- Actuator mounts directly onto valve body without need for linkages or calibration
- Manual override lever (normally closed only)
- Actuator can be replaced without any tools, or removal of valve from system
Specs
–
| Size: | 3/4" |
|---|---|
| Body Pattern: | 2-Way |
| Connection Type: | Sweat |
| Flow Capacity (Cv): | 3.5 |
| Actuator Type: | General Close-Off On/Off |
| Voltage: | 24V |
| Position: | Normally Closed |
| Wiring: | Terminal Block w/ End Switch |
| End Switch: | Yes |
