Direct Replacement:

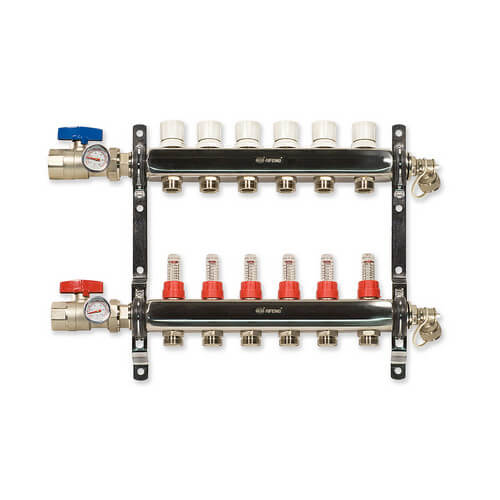

6-Loop Stainless Steel Radiant Heat Manifold
Product Highlights
–
PEX-AL-PEX Compression, PEX Compression
6
Stainless Steel
0°F - 185°F
194°F Max Temp
PEX, PEX-AL-PEX
Description
–
Features:
This manifold requires (12) Loop Fitting Assemblies:
PEX Loop Fitting Assemblies Options
MA-50P: 1/2" PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2" PEX to a loop of the Manifold MA-38P: 3/8" PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8" PEX to a loop of the Manifold MA-58P: 5/8" PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8" PEX to a loop of the Manifold PEX-AL-PEX Loop Fitting Assemblies Options
MA-50PAP: 1/2" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2" PEX-AL-PEX to a loop of the Manifold MA-38PAP: 3/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8" PEX-AL-PEX to a loop of the Manifold MA-58PAP: 5/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8" PEX-AL-PEX to a loop of the Manifold
Optional Installation Accessories:
Loop End Cap
Note: Bleeder valves that come equipped with Rifeng Manifolds are 1" BSP Thread (manifold inlet) x 3/4" BSP Thread (outlet). If your application requires you to connect to a garden hose, you will need to purchase a Mr. PEX Manifold End Cap w/ Swivel Fill-Drain Valve separately which is 1" BSP x 3/4" Hose Thread
- Flexible, modular and singular design system
- Easy-to-assemble construction
- Precise flow control and balancing
- Fitting for both PEX and Multilayer Pipe
- Control for the dominant heating systems like hydronic floor heating, fan coil heating or baseboard heating.
- No Sealant or Teflon required
This manifold requires (12) Loop Fitting Assemblies:
PEX Loop Fitting Assemblies Options
This fitting will connect 1/2" PEX to a loop of the Manifold
This fitting will connect 3/8" PEX to a loop of the Manifold
This fitting will connect 5/8" PEX to a loop of the Manifold PEX-AL-PEX Loop Fitting Assemblies Options
This fitting will connect 1/2" PEX-AL-PEX to a loop of the Manifold
This fitting will connect 3/8" PEX-AL-PEX to a loop of the Manifold
This fitting will connect 5/8" PEX-AL-PEX to a loop of the Manifold
Optional Installation Accessories:
Loop End Cap
- 3610003: Manifold Loop End Cap
These allow you to cap off a loop of the manifold if it will not be used.
- MA-ACT: Thermal Actuator for Rifeng Manifolds
If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.
- MA-1014C: Supply/Return Adapter to 1" & 1-1/4" Copper
- MA-10MPT: Supply/Return Adapter to 1" Male NPT
- MA-10FPT: Supply/Return Adapter to 1" Female NPT
- MA-75MPT: Supply/Return Adapter to 3/4" Male NPT
Note: Bleeder valves that come equipped with Rifeng Manifolds are 1" BSP Thread (manifold inlet) x 3/4" BSP Thread (outlet). If your application requires you to connect to a garden hose, you will need to purchase a Mr. PEX Manifold End Cap w/ Swivel Fill-Drain Valve separately which is 1" BSP x 3/4" Hose Thread
Specs
–
| PEX Size: | 1/2" 3/8" 5/8" |
|---|---|
| Number of Outlets: | 6 |
| Main Inlet Size: | 1" FPT |
| Loop Thread: | EK20 |
| Temperature Range (F): | 0°F - 185°F |
| Max Temp (F): | 194°F |
| Material: | Stainless Steel |
| Application: | Heating |
| Fitting System Compatibility: | PEX-AL-PEX Compression PEX Compression |
| Tubing Compatibility: | PEX PEX-AL-PEX |
| Standards Met: | NSF ASTM F877 CSA B137.5 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
You May Also Need
9 Replacement Parts
Replacement Shutoff Valve Cap
SKU: HMRPBAL
Bluefin
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.14 out of 21 reviews
89% would recommend this product
5 star
57%
4 star
24%
3 star
0%
2 star
14%
1 star
5%
Customer Images
Most Liked Positive Review
"I would buy this product again"
Using this for my infloor heat in a 40' X 50' area, with 1/2" pex tubing in a concrete floor. Each loop averages around 300'. Seems to be holding the supply temp at around 110-120 degrees. Installed on 1-3-13 and seems to be working OK so far. Did have some problems getting all the air out of the system and thought that it would be more automatic, as far as air release. Could have had more elaborate instructions come with the Manifold.
VS
Most Liked Negative Review
Manifold
The drain and bleeder valves are very difficult to use. The threads do not match any of the domestic threads we use in the USA so it makes it where you can not hook up a to a drain for easy flushing, other than that it is a good product. Because of this issue I would purchase another product that can be better utilized in the states
Showing 1-10 of 21 reviews
Hundreds purchased 100% trouble free
Used for new construction for 5 plus years, trouble free , priced right!!
Chad Hardy
Mpls mn
2 months ago
Verified Buyer
Was this review helpful to you?
Great Buy
Compared to the cost of the fittings it replaces this thing is very economical. No leaks, very easy to install, although wrench access is limited sometimes. Only suggestion I would note is that it would be nice if it didn't spin around when you're trying to tighten fittings after its mounted and if there were a kit you could buy with the zone valves included for more value.
aschot12
Forrest Lake, MN
5 years ago
Verified Buyer
Was this review helpful to you?
HEAVY STAINLESS AND GOOD BUILD QUALITY
GREAT PRICE AND WORKED PERFECTLY FOR MY SMALL HEATING PROJECT
CHAD
FORT WAYNE, IN
6 years ago
Verified Buyer
Was this review helpful to you?
Solid Manifold
Easy to use and install. Works great with my in floor heating system and easily hooked up to my 1/2" pex tubes.
Marc
WI
7 years ago
Verified Buyer
Was this review helpful to you?
Great unit at a better price
Works flawlessly. Great manifold.
Brad S.
St. Joseph
7 years ago
Verified Buyer
Was this review helpful to you?
Buy Something Else
Compared or every other brand I have purchased from Supply House, these manifolds are truly junk.
I have four 6-loop manifolds. On each manifold multiple pex compression fittings leaked unless they are torqued so high I fear the nut will split. I shredded multiple o-rings in the process.
Now after three years using them, I find at least one loop leaking each season (and this is only 12 psi!!!!)
I plan on replacing all of them.
Douglas
Seattle
7 years ago
Was this review helpful to you?
Good product
Great product great service
Daniel
NY
7 years ago
Verified Buyer
Was this review helpful to you?
A Superior Manifoold System at a Reasonable Price
After using the Uponor EP manifolds for all my previous radiant heat installations, I decided to try out this Bluefin system, and I'm glad I did. It's a better engineered, more robust unit at a much lower price point. Excellent!
Jim
Whidbey Island, Washington
9 years ago
Verified Buyer
Was this review helpful to you?
Manifold
The drain and bleeder valves are very difficult to use. The threads do not match any of the domestic threads we use in the USA so it makes it where you can not hook up a to a drain for easy flushing, other than that it is a good product. Because of this issue I would purchase another product that can be better utilized in the states
Rob
Peotone, IL
9 years ago
Verified Buyer
Was this review helpful to you?
Disapointed
These manifolds are not threaded for NPT hose adaptors so
purging and filling require more fittings, or making a miss because a standard hose wont fit.
Hydroman
Chicago
9 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
4 Questions4 Questions

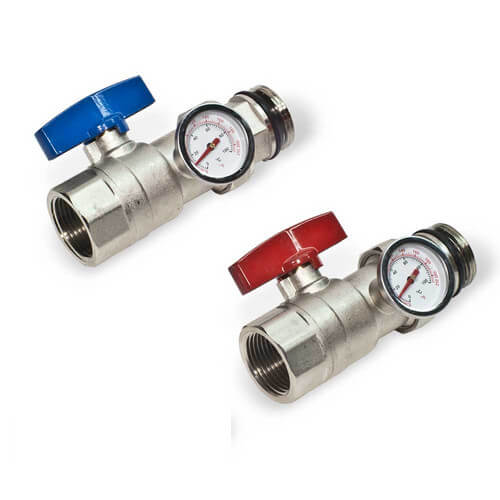

Q: to make it easy for installation can I switch the valve/pressure gauge with the bleeder valve ( end for end )? are the valves made for sweat fitting ?
Asked by john 13 11 years ago
Add your answer
-
Yes it will work on either end, I installed two of them 2 yrs ago they work great
Was this review helpful to you?
Q: Is there a pressure test kit/fitting that works with this manifold?
Asked by NinjaDuck 11 years ago
Add your answer
Verified Reply- SupplyHouse StaffHello NinjaDuck, The pressure test kit that we recommend for the Rifeng manifolds will be SKU:3610005. Thanks,
Was this review helpful to you?
Q: I ordered this manifold, it came assembled with the flow gauges on top and the "white knobs" on the bottom , opposite of the picture, does it matter which is on top( dumb question maybe, but I read somewhere the return should be on top)? Also should the return be to the gauge side or the white knob side?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe supply must be on the red half of the manifold with the flow meters. The return needs to be the section with the white knobs. It does not matter which section is on the top and which is on the bottom. You can re-position these manually.
Was this review helpful to you?
Q: On the picture of the manifolds it has the white "fittings" on the return side(top) I take it this is where the temperature actuators go. I already have temp sensors in my system so can these ports be plugged off or do I NEED the actuators? If they can be plugged off, what is to be used?
Asked by Johnny 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe actuators are not a necessity. They simply give an easy option for zoning the system. The white caps are used to open and close each loop manually. You would not need to plug them off.
Was this review helpful to you?
