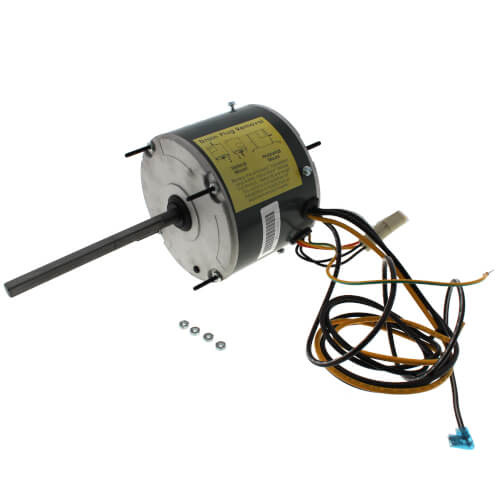

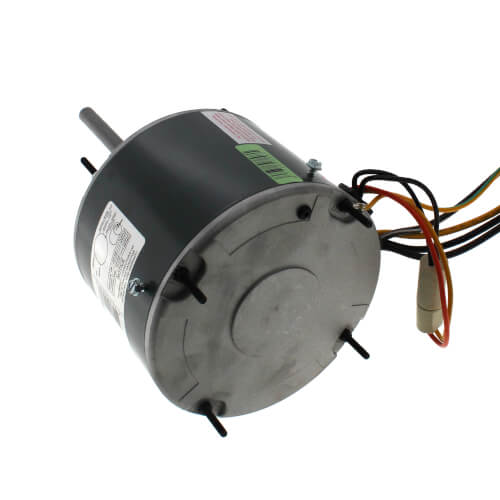

1/4 HP, 208-230 VAC Condenser Fan Motor
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$91.08 each
In Stock
Get 129 Tue, Jun 9
Order by today, receive Tuesday
MANUALS (1)
This item replaces: WG840728HT
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
CW/CCW
1/4 HP
Shaft up, shaft down, or belly band
1.8 Amps
Description
–
- Installs with all Standard 48 Frame Mounting Brackets
- Standard Shaft Length, Diameter, and Flats
- Drain Holes with Plugs in Both End Plates
- Automatic Thermal Overload Protector
- Standard 48 Frame Motor Casing Size
- Low Power Consumption
- 60 C Ambient Design
- Electrically Reversible
- Continuous Air Over
- Class B Insulation
- Quiet Operation
- Extended Studs
- 30" Leads
- Color Packaging
Bright, colorful, easy to read packaging removes confusion about motors. The distributor can easily identify the stock of motors on the shelf. The application, voltage, and horsepower of a motor are visible at a glance. - Capacitor Size
The appropriate size 370 VAC run capacitor is noted on every motor carton. - Innovative Packaging
A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft, and mounting bolts during shipment. (See Image #2) - Larger Diagram
An extra large wiring diagram is supplied on the motor itself, on the motor carton, and also in the installation and safety instruction sheet. This large wiring diagram makes it very easy to read. - Cross Reference
For your convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton. - Large Label
Informative product label contains the motor model number in large type. The UPC code is also printed on every motor label. - Extended Bolts
Extended mounting bolts provide for easier installation in cramped spaces. With the longer bolts, the installer is able to more easily start the threaded mounting nut. - Extended Wires
Wagner motor wires are thirty inches long. The added length makes it easier for the contractor to install the new motor. - Wire Stripping
Partial stripping leaves the insulation on the motor connection wire. This protects the stranded copper wire and prevents damage to individual strands. - Insulated Disconnects
Run capacitor connections are insulated for increased safety. Flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided.
Specs
–
| Amperage: | 1.8 |
|---|---|
| Motor: | Permanent Split Capacitor |
| Horse Power: | 1/4 |
| Voltage: | 208/230V |
| RPM: | 1075 |
| Speeds: | 1 |
| Capacitor: | 370 VAC |
| Hertz: | 60 |
| Mount: | Shaft up, shaft down, or belly band |
| Insulation Class: | B |
| Bearings: | Sleeve |
| Finish: | Grey-green powdercoat |
| Frame Size: | 48 |
| Rotation: | CW/CCW |
| Temperature Rating: | 60 deg C / 140 deg F |
| Lead Wire Length: | 30 inches |
| Lead Wire Gauge: | #18 AWG |
| Motor Diameter: | 5.59" |
| Motor Length: | 10.584" |
| Shaft Diameter: | 1/2" |
| Shaft Flats: | One flat |
| Weight (lbs): | 12.1 lbs |
