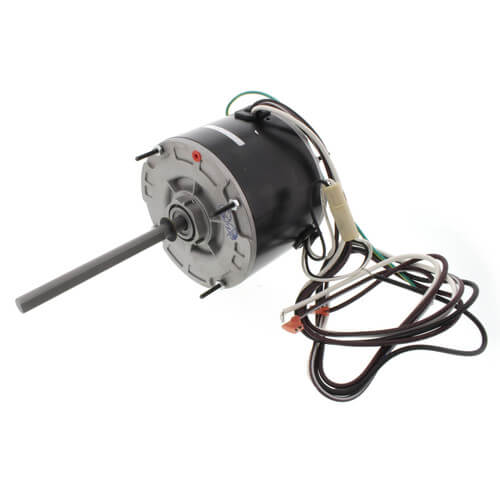

5-5/8" PSC Condenser Fan Motor (1/3 - 1/6 HP, 208-230V, 1075 RPM)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$117.80 each
In Stock
Get 26 Tomorrow, Jul 3
Order by 6PM, receive Tomorrow
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
208/230V
1075 RPM
Reversible
1/3 - 1/6 HP
2 Amps
Description
–
Note: This is an aftermarket replacement part, please confirm compatibility with your original manufacturer part number
Application: Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
Features
Specifications
Application: Designed for condenser fan and heat pump units requiring vertical shaft up or vertical shaft down positioning with “belly band” or extended clamp screw mounting.
Features
- Replaces Rheem and Hundreds of Other Condenser Motors
- Permanent split capacitor
- Mounts by belly band, thru bolts or Rheem mounting holes with screws
- Single speed
- Totally enclosed
- Single phase
- 48 Frame
- 60 Hertz
- Ball bearings
- Electrically reversible
- All angle mounting
- Automatic overload
Specifications
- H.P. 1/3-1/4-1/5-1/6
- Speeds 1
- Amps 1.8-2.0
- Rotation Reversible
- Capacitor POC7.5
- RPM 1075
- Bearings Ball
- Diameter (In.) 5-5/8
- Enclosure Totally Enclosed
- Mounting Stud
- Shaft Length (In.) 6-13/16
- Motor Type Permanent Split Capacitor
- Frame 48
- Overload Protection Automatic
- Phase 1
- Shaft Diameter (In.) 1/2
- Shafts 1
- Hertz 60
- Shaft Dimension (In.) 1/2 x 6-1/2
- Length Less Shaft (In.) 4-1/8
- Voltage 208 - 230
- Capacitor Required 7.5M/370V
- Weight (lbs.) 11.6
Specs
–
| Type: | Permanent Split Capacitor |
|---|---|
| Speeds: | 1 |
| Horse Power: | 1/3 - 1/6 |
| Voltage: | 208/230V |
| Amperage: | 2 |
| Rotation: | Reversible |
| RPM: | 1075 |
| Enclosure Type: | Totally Enclosed |
| Bearings: | Ball |
