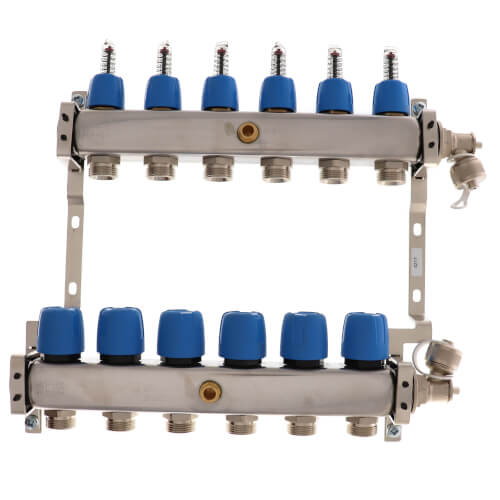

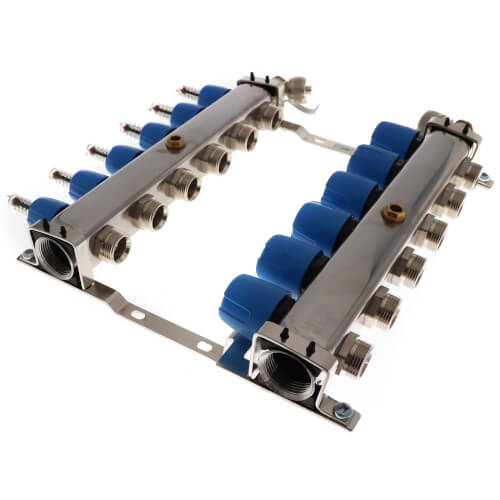

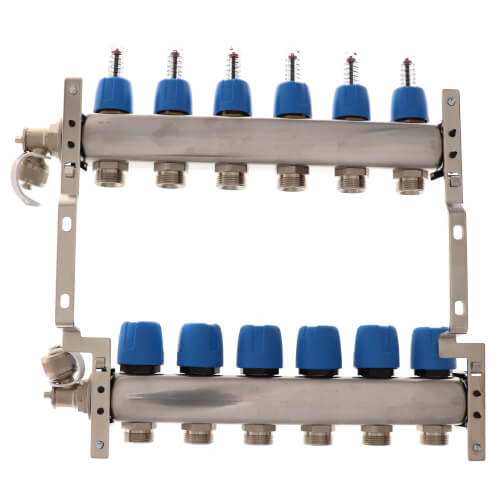

6 Loop 1-1/4" Stainless Steel Manifold (Fully Assembled)

Note: This manifold requires 12 Loop Fitting Assemblies (please see below).

Mr. PEX 1-1/4" Stainless Steel manifolds achieves the highest level of long term corrosion resistance by using a bright annealed high-grade, Type 304, stainless steel with high nickel content. This creates a stable material structure with low levels of ferrite and magnetism. To eliminate the possibility of contact corrosion, all fittings connected to the manifold are nickel-plated. The manifolds are fully assembled, ready for mounting,

The supply side features adjustable flow-meters for flows up to 1.45 gpm per loop, and the return side has balancing on/off valves, in accordance with DIN EN 1264-4. The adjustable flow-meter allows for a positive shut-off and the manual plastic cap on the return valve can be removed to accommodate a valve actuator. The return balancing valve disc is designed to enable exact adjustments of small flows while still being able to handle large flow with minimal resistance. The branch Cv value is 1.38 and the manifold body accommodates flows up to 14 gpm.

The supply and return manifold bodies both have wells to accomodate optional thermometers, and a multi-function swivel End Cap allowing for Fill/Drain or Vent. Each inlet of the manifold has a G 1" thread (BSP straight metric thread) allowing for easy connections of the supply and return mains. Use only MrPEX® Manifold Option adapters for appropriate connection. The branches have Eurokonus (EK20) connections, and all MrPEX® EK20 compression fitting assemblies (PEX to EK20 or PEX-AL-PEX to EK20) can be used to connect tubing to the manifold.

This manifold requires (12) Loop Fitting Assemblies:

PEX Loop Fitting Assemblies Options

• 4310500: 1/2" PEX to EK20 Loop Fitting Assembly
  This fitting will connect 1/2" PEX to a loop of the Manifold
• 4310375: 3/8" PEX to EK20 Loop Fitting Assembly
  This fitting will connect 3/8" PEX to a loop of the Manifold
• 4310625: 5/8" PEX to EK20 Loop Fitting Assembly
  This fitting will connect 5/8" PEX to a loop of the Manifold

PEX-AL-PEX Loop Fitting Assemblies Options

• 2410500: 1/2" PEX-AL-PEX to EK20 Loop Fitting Assembly
  This fitting will connect 1/2" PEX-AL-PEX to a loop of the Manifold
• 2410375: 3/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
  This fitting will connect 3/8" PEX-AL-PEX to a loop of the Manifold
• 2410625: 5/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
  This fitting will connect 5/8" PEX-AL-PEX to a loop of the Manifold


Optional Installation Accessories:

Manifold Transition Ball Valves

• 3620019: Manifold Transition Ball Valve, Straight (Box of 2)
  These allow you to quickly shut-off the supply and return sides of the manifold. This fitting is 1" BSP x 1" Female NPT, which allows you to transition from the manifold to a Male threaded connection.
• 3620008: Isolation Union Ball Valve (Box of 2)
  These allow you to quickly shut-off the supply and return sides of the manifold. This fitting is 1" Male BSP x 1" Female BSP, which allows you to transition from the manifold to a Male BSP connection.

Loop End Cap

• 3610003: Manifold Loop End Cap
  These allow you to cap off a loop of the manifold if it will not be used.

Supply/Return Adapter Options

• Supply/Return Adapters

Actuators

• 5120700: Thermal Actuator for Mr. PEX Manifolds (4 Wire)
  If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.

Manifold Thermometer

• 3230001: Manifold Thermometer (Box of 2)
  These display the temperature of the supply and return sides of the manifold.
