$166.02 each
In Stock
Get 175 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (3)
This item replaces: RHM02
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
PEX Compression, PEX-AL-PEX Compression
2
Stainless Steel
0°F - 185°F
194°F Max Temp
PEX, PEX-AL-PEX
Description
–

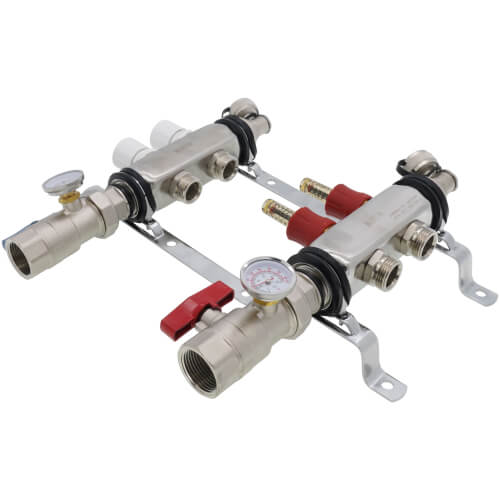

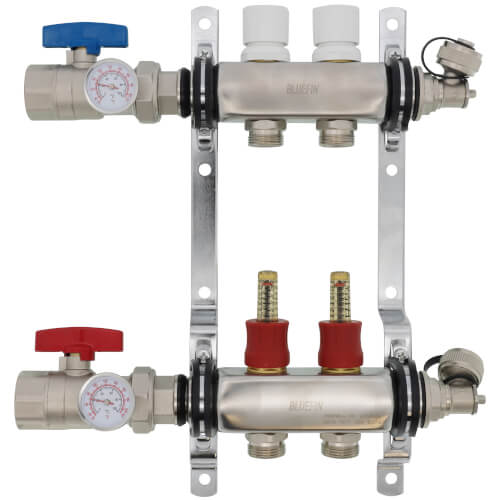

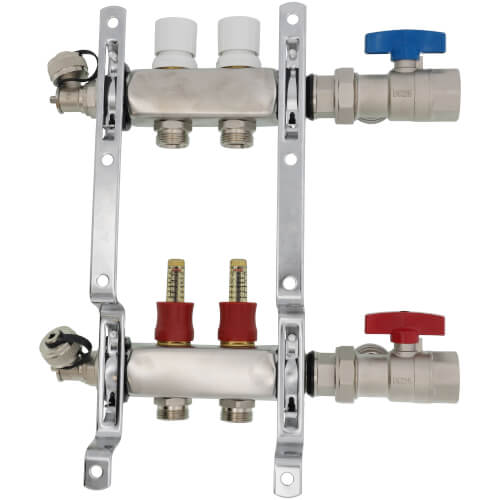

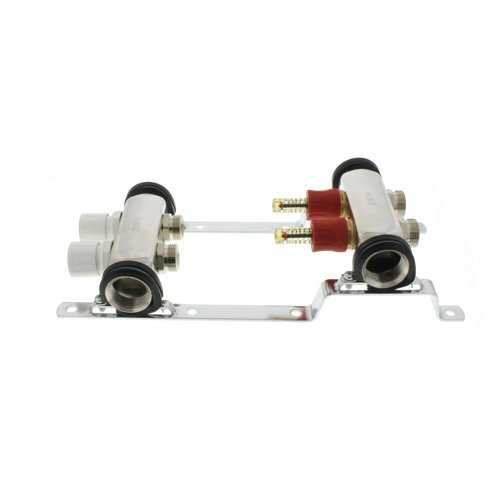

Includes supply/return shut-off valves with temperature wells.
Requires 4 Loop Fitting Assemblies (please see below).
Features:
- Flexible, modular and singular design system
- Easy-to-assemble construction
- Precise flow control and balancing
- Fitting for both PEX and Multilayer Pipe
- Control for the dominant heating systems like hydronic floor heating, fan coil heating or baseboard heating.
- No Sealant or Teflon required
This manifold requires (4) Loop Fitting Assemblies:
PEX Loop Fitting Assemblies Options
- 1/2" PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2" PEX to a loop of the Manifold - 3/8" PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8" PEX to a loop of the Manifold - 5/8" PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8" PEX to a loop of the Manifold
PEX-AL-PEX Loop Fitting Assemblies Options
- MA-50PAP: 1/2" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2" PEX-AL-PEX to a loop of the Manifold - 3/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8" PEX-AL-PEX to a loop of the Manifold - MA-58PAP: 5/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8" PEX-AL-PEX to a loop of the Manifold
Optional Installation Accessories:
Loop End Cap - These allow you to cap off a loop of the manifold if it will not be used.
Actuators
- Thermal Actuator for Bluefin Manifolds
If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.
The VA 80 adapter ring is also required when using an actuator with a Bluefin manifold, which you can find here.
Supply/Return Adapter Options
- MA-1014C: Supply/Return Adapter to 1" & 1-1/4" Copper
- MA-10MPT: Supply/Return Adapter to 1" Male NPT
- MA-10FPT: Supply/Return Adapter to 1" Female NPT
- MA-75MPT: Supply/Return Adapter to 3/4" Male NPT
Pressure Test Kit
Specs
–
| Number of Outlets: | 2 |
|---|---|
| PEX Size: | 1/2" 3/8" 5/8" |
| Main Inlet Size: | 1" FPT |
| Loop Thread: | EK20 |
| Temperature Range (F): | 0°F - 185°F |
| Max Temp (F): | 194°F |
| Material: | Stainless Steel |
| Application: | Heating |
| Fitting System Compatibility: | PEX Compression PEX-AL-PEX Compression |
| Tubing Compatibility: | PEX PEX-AL-PEX |
| Standards Met: | NSF CSA B137.5 ASTM F877 |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Number of Outlets
Material
You May Also Need
9 Replacement Parts
Replacement Shutoff Valve Cap
SKU: HMRPBAL
Bluefin
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
3.88 out of 8 reviews
56.99999999999999% would recommend this product
5 star
63%
4 star
0%
3 star
13%
2 star
13%
1 star
13%
Showing 1-8 of 8 reviews
I've had great results with this product.
I have bought a lot of these units and have had no issues with them. Great product with all the accessories that you need.
matt
South Dakota
1 years ago
Verified Buyer
Was this review helpful to you?
I will never buy this again
It keeps leaking, u can't use pipe thre8
Ted
NJ
3 years ago
Verified Buyer
Was this review helpful to you?
Well built manifold
Used as an extension to an existing system
Niki76gg
Emeruville
8 years ago
Verified Buyer
Was this review helpful to you?
I would buy again
Great product at a good price
Joe
W.V
8 years ago
Verified Buyer
Was this review helpful to you?
Fittings Leak
Good product other than the 1/2" compression fittings for the PEX. Leak during pressure test no matter how tight they were put on. Have to get new fittings before hooking them up. Maybe spend the extra cash for better fittings rather than using the ones that came with the BluFin radiant package?
Max
Tennessee
9 years ago
Verified Buyer
Was this review helpful to you?
Great value
Nice features including ball valves and flow meters. Also nice that replacement parts are available at a good price, not that I needed any yet.
Timsen
San Jose, CA
10 years ago
Verified Buyer
Was this review helpful to you?
Every component needed, except fittings, is included
I have a simple in slab, 2 loop, heating system and this unit is perfect.
100% Stainless steel construction with a nice wall mount assembly.
Solar boy
Limington, Maine
10 years ago
Verified Buyer
Was this review helpful to you?
Beware of faulty threading
This would be an incredible bang for you buck item but for the valve threading. Side to manifold fine (obviously very forgiving given that a gasket is employed). However, other side leaks. despite being tight enough and thread sealant properly applied a bothersome drip remains (both H/C valves). I noticed that replacement valve sets are backordered which makes me wonder if these things are irregular and folks have had to order replacement readily to replace stock sets (that come with the manifold). Then again at less that $40 for a set, perhaps you get what you pay for. Beyond the valves the manifold is well built and easy to install. Only other thing is that I think the direction are incorrect (typo) as H inlet flow adjust units in practice function opposite of the direction in term of what happens when turned counter vs clock wise.
Stephen
MA
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
3 Questions3 Questions
Q: CAN I COUPLE THIS MANIFOLD WITH A 12 LOOP AS I HAVE A GARAGE WITH 14 LOOPS IN THE FLOOR . WHAT FITTINGS WOULD I NEED TO DO THIS?
Asked by larry 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffBluefin does not offer a coupling, but you could branch off of your supply lines to your 12 loop to feed the 2 loop and mount it separately.
Was this review helpful to you?
Q: can these manifolds be used inverted with the flow meters pointing down
Asked by CHESTER 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffNo they can not, must be installed upright.
Was this review helpful to you?
Verified Reply- Supplyhouse StaffNo they can not.
Was this review helpful to you?
Q: Are the following included with this product: -inlet and outlet shut-off valves with dial thermometer, if so what size connection -compression connetors for the pex supply and return lines
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe manifold comes with inlet and outlet shut-off valves that each have a dial thermometer. They connect to the 1" BSP connections on the manifold, and have 1" female NPT thread for supply and return piping connections. The thread size is EK20 for the loop connections.
