$326.56 each
In Stock
Get 97 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
This item replaces: RHM07
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

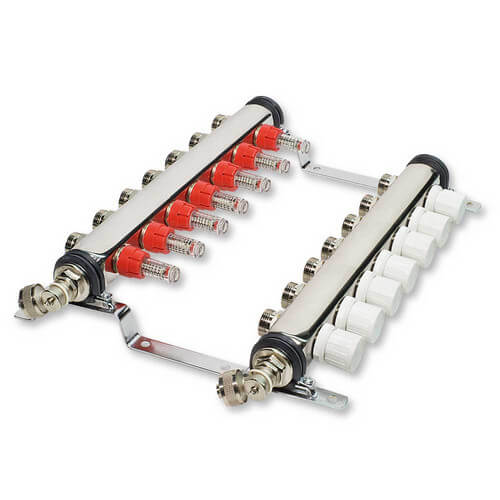

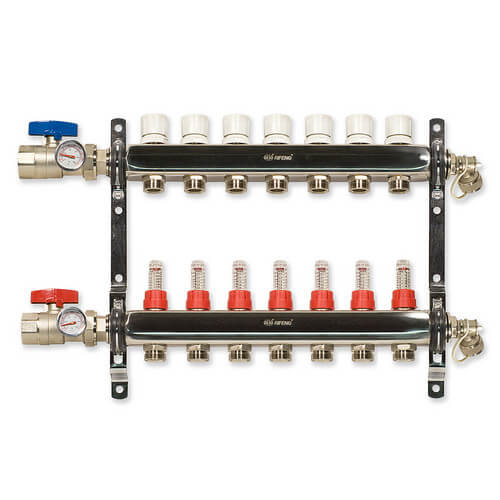

Product Highlights
–
PEX Compression, PEX-AL-PEX Compression
7
Stainless Steel
0°F - 185°F
194°F Max Temp
PEX-AL-PEX, PEX
Description
–
Compatible with Rifeng accessories and replacement parts.

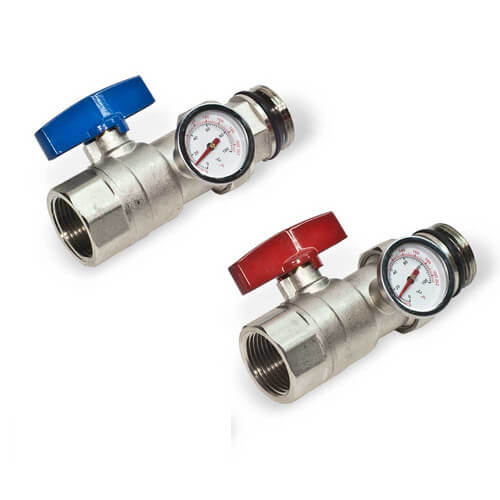

Includes supply/return shut-off valves with temperature wells.
Requires 14 Loop Fitting Assemblies (please see below).
Features:
- Flexible, modular and singular design system
- Easy-to-assemble construction
- Precise flow control and balancing
- Fitting for both PEX and Multilayer Pipe
- Control for the dominant heating systems like hydronic floor heating, fan coil heating or baseboard heating.
- No Sealant or Teflon required
This manifold requires (14) Loop Fitting Assemblies:
PEX Loop Fitting Assemblies Options
- 1/2" PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2" PEX to a loop of the Manifold - 3/8" PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8" PEX to a loop of the Manifold - 5/8" PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8" PEX to a loop of the Manifold
PEX-AL-PEX Loop Fitting Assemblies Options
- MA-50PAP: 1/2" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2" PEX-AL-PEX to a loop of the Manifold - 3/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8" PEX-AL-PEX to a loop of the Manifold - MA-58PAP: 5/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8" PEX-AL-PEX to a loop of the Manifold
Optional Installation Accessories:
Loop End Cap - These allow you to cap off a loop of the manifold if it will not be used.
Actuators
- Thermal Actuator for Bluefin Manifolds
If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.
The VA 80 adapter ring is also required when using an actuator with a Bluefin manifold, which you can find here.
Supply/Return Adapter Options
- MA-1014C: Supply/Return Adapter to 1" & 1-1/4" Copper
- MA-10MPT: Supply/Return Adapter to 1" Male NPT
- MA-10FPT: Supply/Return Adapter to 1" Female NPT
- MA-75MPT: Supply/Return Adapter to 3/4" Male NPT
Pressure Test Kit
Specs
–
| PEX Size: | 1/2" 3/8" 5/8" |
|---|---|
| Number of Outlets: | 7 |
| Main Inlet Size: | 1" FPT |
| Loop Thread: | EK20 |
| Temperature Range (F): | 0°F - 185°F |
| Max Temp (F): | 194°F |
| Material: | Stainless Steel |
| Application: | Heating |
| Fitting System Compatibility: | PEX Compression PEX-AL-PEX Compression |
| Tubing Compatibility: | PEX-AL-PEX PEX |
| Standards Met: | CSA B137.5 NSF ASTM F877 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
You May Also Need
9 Replacement Parts
Replacement Shutoff Valve Cap
SKU: HMRPBAL
Bluefin
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
4.9 out of 10 reviews
100% would recommend this product
5 star
90%
4 star
10%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-10 of 10 reviews
I recommend the manifolds!
Excellent! Great quality!
Maynard
Albion Michigan
3 years ago
Verified Buyer
Was this review helpful to you?
very good product
good quality manifold ,have used it before
best price also
no complains
d
michigan
3 years ago
Verified Buyer
Was this review helpful to you?
A Great Value
It took me a while to figure out the purge / vent fittings which appear to function as a vent for purging the system but if used to apply air pressure for pressure testing the manifold and lines they leak unless the valve is fully back-seated. If only partially open to add air pressure they leak and will not allow system pressure to gain and hold. Also it may be best to open and inspect both ends of each manifold for stainless burrs at the gasket faces. On side of our manifold had a nasty burr that tore up the gasket. On future installations we will have a Dremmel tool with small grindstone on the truck to remedy any issues with burrs.
Geo Jeff
Columbus OH
5 years ago
Verified Buyer
Was this review helpful to you?
Great product
I have use the product and install for many years and it is easy to install and easy to control the flow.
Jacob
Northern VA
7 years ago
Verified Buyer
Was this review helpful to you?
fine quality, half the price
I used a Watts manifold for an emergency repair of a leaking manifold because it was carried at a local store.
Ordered Bluefin on line to replace other failing manifolds.
Bluefin is just as good as the Watts at half the price. I think the flow adjustment mechanism is actually superior on the Bluefin.
keith j
Ohio
7 years ago
Was this review helpful to you?
very happy so far
I installed a seven loop in-floor radiant heat system in my pole barn floor and used this manifold to control it. i'm very satisfied with its performance so far.
Kevin
Mt. Pleasant Michigan
8 years ago
Verified Buyer
Was this review helpful to you?
Show me the difference between this and Viega
Great manifold similar to Viega and Watts, but a lot less money.
tom
mass
9 years ago
Verified Buyer
Was this review helpful to you?
Great Product
this product is excellent in quality. i use this and a watts 7 branch manifold on another floor. Riefeng seems to be built a bit better and costs less.
mike
Fort Lee, NJ
14 years ago
Verified Buyer
Was this review helpful to you?
good quality - remember it is BSP, not N
Great quality. All worked as it should. Remember the female pipe thread to which you must connect is 1" BSP, rather than 1" NPT. The threads are so similar it is very easy to think they are 1" NPT threads -- this size even "feels right" when incorrectly installing NPT threads. Don't forget to buy the adapters!
Note: I bought a no-name brand manifold for the previous job, and the difference is significant.
Merchant response
14 years ago
The manifold has 1" BSP threads, but the included ball valves have 1" female NPT threads for connecting to supply and return piping.
Jimbo1969
Colorado Springs, CO
14 years ago
Verified Buyer
Was this review helpful to you?
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
This Manifold is the cats meow
All gauges are already built in for easy service ability. Provides easy instillation. Easy hook up.
Geothermal "Geo" the Ground Hog
Waterville, NY
14 years ago
Verified Buyer
Was this review helpful to you?
