$236.65 each
In Stock
Get 248 Tue, Jun 16
Order by today, receive Tuesday
MANUALS (3)
This item replaces: RHM04
'/%3E%3C/svg%3E){kind=small}
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

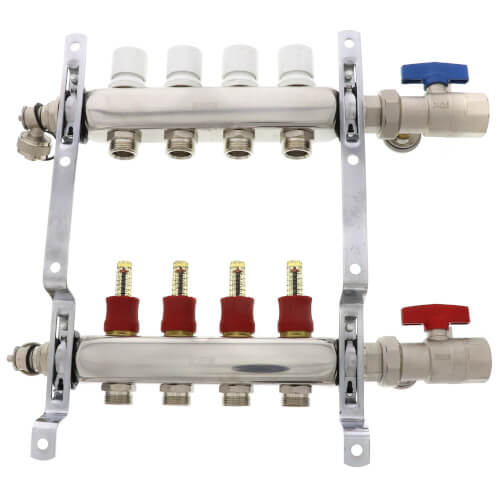

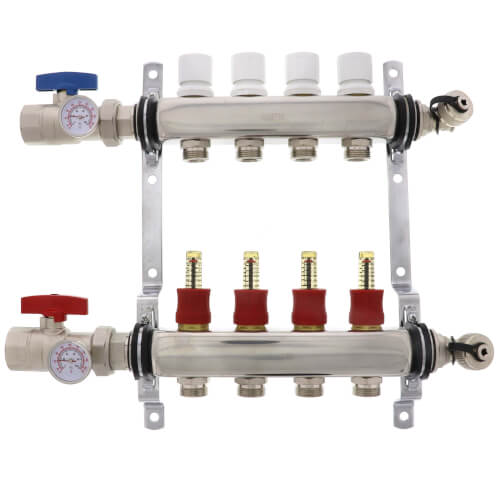

Product Highlights
–
PEX-AL-PEX Compression, PEX Compression
4
Stainless Steel
0°F - 185°F
194°F Max Temp
PEX, PEX-AL-PEX
Description
–
Compatible with Rifeng accessories and replacement parts.
Includes supply/return shut-off valves with temperature wells.
Requires 8 Loop Fitting Assemblies (please see below).
Features:
- Flexible, modular and singular design system
- Easy-to-assemble construction
- Precise flow control and balancing
- Fitting for both PEX and Multilayer Pipe
- Control for the dominant heating systems like hydronic floor heating, fan coil heating or baseboard heating.
- No Sealant or Teflon required
This manifold requires (8) Loop Fitting Assemblies:
PEX Loop Fitting Assemblies Options
- 1/2" PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2" PEX to a loop of the Manifold - 3/8" PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8" PEX to a loop of the Manifold - 5/8" PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8" PEX to a loop of the Manifold
PEX-AL-PEX Loop Fitting Assemblies Options
- MA-50PAP: 1/2" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 1/2" PEX-AL-PEX to a loop of the Manifold - 3/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 3/8" PEX-AL-PEX to a loop of the Manifold - MA-58PAP: 5/8" PEX-AL-PEX to EK20 Loop Fitting Assembly
This fitting will connect 5/8" PEX-AL-PEX to a loop of the Manifold
Optional Installation Accessories:
Loop End Cap - These allow you to cap off a loop of the manifold if it will not be used.
Actuators
- Thermal Actuator for Bluefin Manifolds
If you want to use your manifold to heat multiple zones, you can purchase return side actuators that work along side thermostats. The actuators act as zone valves to allow you to use one manifold to control the temperature in different rooms independently.
The VA 80 adapter ring is also required when using an actuator with a Bluefin manifold, which you can find here.
Supply/Return Adapter Options
Specs
–
| Number of Outlets: | 4 |
|---|---|
| PEX Size: | 1/2" 3/8" 5/8" |
| Main Inlet Size: | 1" FPT |
| Loop Thread: | EK20 |
| Temperature Range (F): | 0°F - 185°F |
| Max Temp (F): | 194°F |
| Material: | Stainless Steel |
| Application: | Heating |
| Fitting System Compatibility: | PEX-AL-PEX Compression PEX Compression |
| Tubing Compatibility: | PEX PEX-AL-PEX |
| Standards Met: | NSF CSA B137.5 ASTM F877 |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
You May Also Need
9 Replacement Parts
Replacement Shutoff Valve Cap
SKU: HMRPBAL
Bluefin
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Reviews
3.96 out of 23 reviews
76% would recommend this product
5 star
61%
4 star
4%
3 star
13%
2 star
13%
1 star
9%
Customer Images
Most Liked Positive Review
I would buy this again
I was able to connect this manifold directly to the shutoff/temp gage union from the old manifold so there was no other replumbing to do.The old and the new manifolds looked nearly identical looking at the picture, but the old manifold had no brand and was constructed very poorly compared to the Bluefin/Rifeng. The old manifold had a crimped connection for the tubing and flow control housing where it connected to the 1" diameter casting with the large nut. The old shutoff union screwed right onto the new manifold, the bracket spacing was either identical or so close I needed no adjustment, and the hose fittings (from the old manifold) screwed right so I now have spare hose connectors.
VS
Most Liked Negative Review
Does the Job but Not Happy
The directions were misspelled ..... They read counterclockwise to turn up flow and counterclockwise to turn down flow makes no sense. Had to go online and download the corrected directions. Also the connections for the supply and return drip. Have tighten them up but they still drip. Don't know what else to do.
Showing 1-10 of 23 reviews
Great product

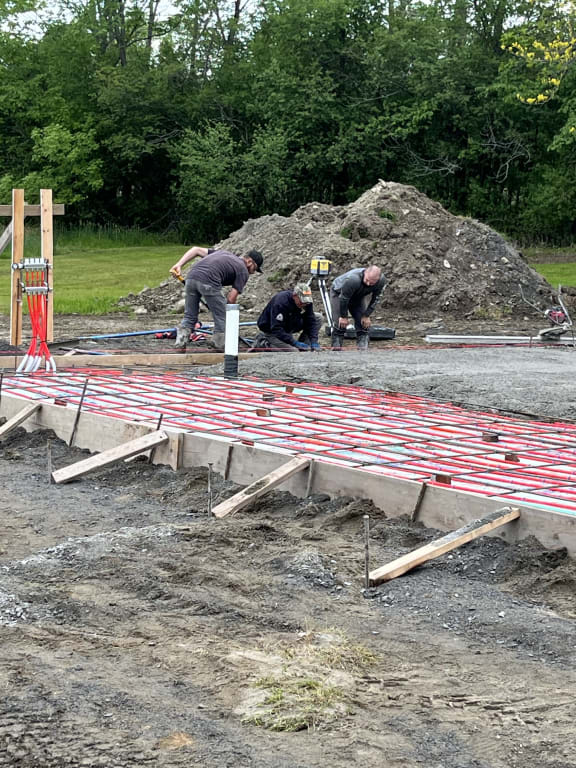

I installed radiant heating in my garage floor. Hooking up the manifold was quick and easy.
DIY'R
Maine
14 days ago
Verified Buyer
Was this review helpful to you?
Instructions aren't very detailed.
It came shipped with S&R manifolds opposite as the instructions show. Not that big of a deal. You can't tell which is S or R manifold from any labeling or text. Easy enough for me to confirm what I already thought was correct using the internet. It also refers to where the blue and red valves get located on each of the S&R manifolds, but the instructions are B&W, so again, not enough info. I haven't installed it yet so I'm not recommending it until it sees some use.
Rick
Northern CA
11 months ago
Was this review helpful to you?
Great Service
Looks great have not had time to put into service.
The service and staff are top notch!
Captain Duane
Upstate New York
3 years ago
Verified Buyer
Was this review helpful to you?
only purchased because first one failed

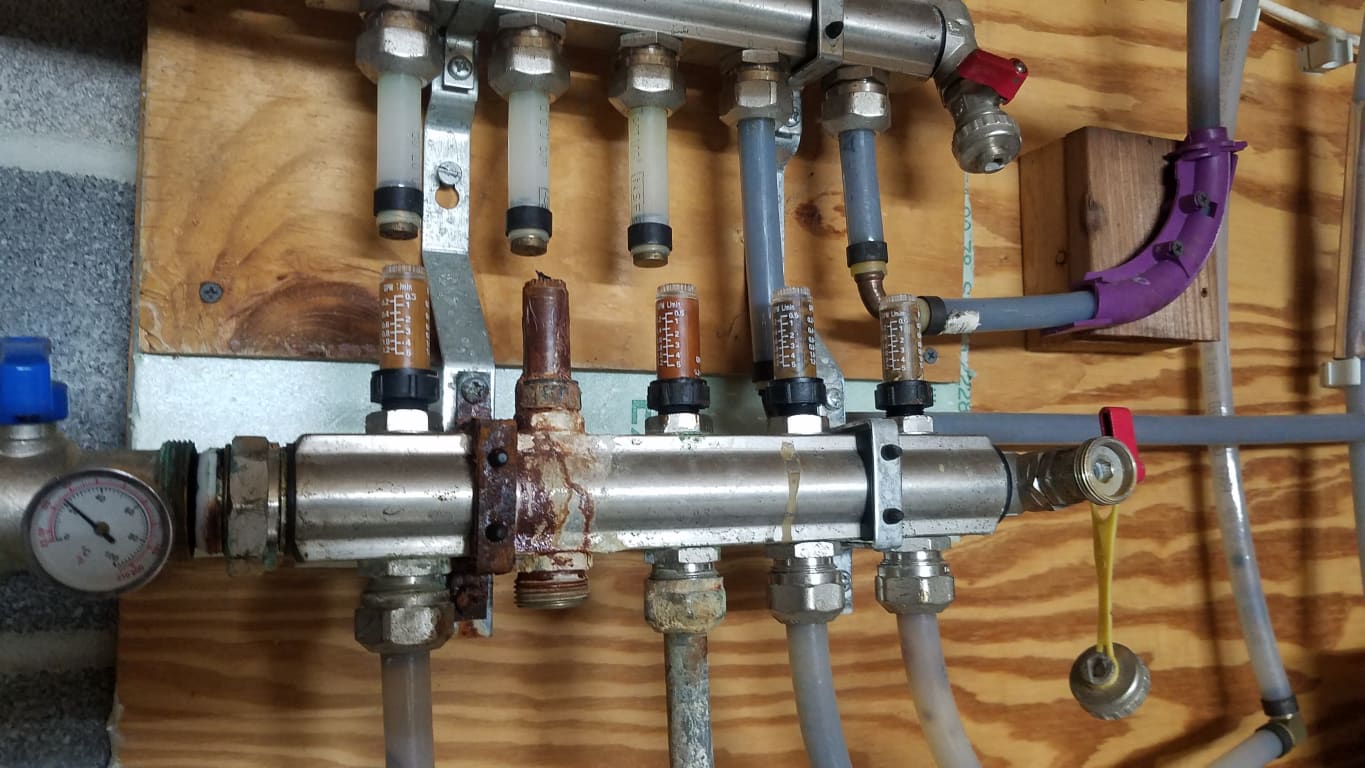

We put an addition on house 10 years ago. With new blue fin boiler and manifold. The flow meter gauges turned cloudy right away ,didn't surprise me with cast boiler. I used cast boiler treatment upon first install.with all oxygen barrier tubing. the stainless steal part of manifold is great .it's the plastic cover on flow meter gauges that cracked and leaked.If you wish to buy one, it will last about 8 to 10 years. I shut down a bad leaking valve about 3 yrs. ago. I purchased this one for easy swap .I did not know original was Blue Fin brand. Supply House was cheaper than 1st. one.
Rob
Madison Ohio
5 years ago
Verified Buyer
Was this review helpful to you?
I will use this product every time I can
Excellent product, easy to install and balance system
FL
PA
5 years ago
Verified Buyer
Was this review helpful to you?
Mainfolds
It was 26 degrees out and the manifolds o rings didn't like to seal up in the cold weather to pressurize the loops...
Scurtis
Michigan
6 years ago
Verified Buyer
Was this review helpful to you?
I would buy again
Well priced and good quality
FJP
NYC
6 years ago
Verified Buyer
Was this review helpful to you?
Great manifold
Works great and easy to install.Installed many with no issues
Paul the plumber
S.D.
6 years ago
Verified Buyer
Was this review helpful to you?
Could be better
These manifolds should be available with NPT
Pex man
Chicago
6 years ago
Verified Buyer
Was this review helpful to you?
I would buy this again
I was able to connect this manifold directly to the shutoff/temp gage union from the old manifold so there was no other replumbing to do.The old and the new manifolds looked nearly identical looking at the picture, but the old manifold had no brand and was constructed very poorly compared to the Bluefin/Rifeng. The old manifold had a crimped connection for the tubing and flow control housing where it connected to the 1" diameter casting with the large nut. The old shutoff union screwed right onto the new manifold, the bracket spacing was either identical or so close I needed no adjustment, and the hose fittings (from the old manifold) screwed right so I now have spare hose connectors.
David
Minnesota
6 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
10 Questions10 Questions
Q: Can you get 3/4 pex fitings for the 4 loop my system is all 3/4 lines ran in my garage floor
Asked by Matthew 8 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, Bluefin does not have 3/4" loop fitting options.
Was this review helpful to you?
Q: Is this manifold compatible with fostapex pure flow multi-layer.
Asked by Hal 10 years ago
Add your answer
Verified Reply- SupplyHouse StaffNo, unfortunately the manufacturer does not offer the appropriate pex press loop fittings to make it compatible with Fostapex tubing.
Was this review helpful to you?
Q: Can this product handle being pressurized to around 16 psi?
Asked by Cole 11 years ago
Add your answer
Verified Reply- Supplyhouse StaffYes, it can.
Was this review helpful to you?
Q: does the pex size 1/2 mean inside or outside diameter my pex says 1/2 inch but is 5/8 od how much are adaptors
Asked by none 13 years ago
Add your answer
Verified Reply- PexSupply Staff1/2" PEX has a .475" inside diameter and a 5/8" outside diameter. It sounds like you have 1/2" PEX. The outside diameter of PEX will always be 1/8" larger than its nominal size.
Was this review helpful to you?
Q: Will this manifold work with uponor plumbing. I have 3/4" uponor, that will be attached with ProPex expandable rings. Thanks for your help
Asked by Jeff 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis manifold works with Uponor PEX tubing, but there are no ProPEX fittings available for use with it. Additionally, the loops on this manifold must be either 1/2", 3/8", or 5/8". To connect 3/4" ProPEX to the shutoff valves (which have 1" female standard pipe thread), you can use the part LF4527510 ProPEX fitting.
Was this review helpful to you?
Q: I have about 1200' of 1/2" rehau pex in my slab, what kind of fittings do I need to connect the pex to this manifold? Is this a good choice or would you choose a different manifold? Also do you have a cheap pressure gauge that will hook up to this manifol?
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffAs long as the Rehau tubing is standard 1/2" PEX and not PEX-AL-PEX, you can use the MA-50P fittings. You can use the MP182 pressure gauge with this manifold.
Was this review helpful to you?
Q: I got one and would like to set it up but upside down so the pipes will go up to the floor above?
Asked by 901 14 years ago
Add your answer
Verified Reply- PexSupply StaffYou can install the manifold upside down. Just keep in mind that you won't be able to read the visual flow meters if they are upside down.
Was this review helpful to you?
- Canoemandan
I turned mine upside down and actually had to take it apart because I needed the flow from the opposite side too. Yes it does work but make sure your soldered fittings that connect to it are all lined up or it may leak like mine did. The flow meters won't work upside down but evidently Mr. Pex flowmeters (item # at pexsupply is 3710172)do work upside down. I plan to order some for my system. Also, the actuators will end up upside down and there is the possibility of water getting in them. I had one die after 3 months; I think because it got a couple drips of water in it.
Was this review helpful to you?
Q: What type of fittings do I need to use this manifold with 1/2 inch PEX?
Asked by Mrares 15 years ago
Add your answer
Verified Reply- PexSupply StaffYou need to use MA-50P fittings with 1/2" PEX at the loops of this manifold.
Was this review helpful to you?
Q: Will this work with Rifeng 5/8 Pex?
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it will.
Was this review helpful to you?
Q: What's the difference between this unit and the other one at the top of the page that looks exactly the same only the item number ends in "-50PK"?
Asked by stunnaman 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe -50PK version also includes 8 loop fitting assemblies (part MA-50P).
Was this review helpful to you?
- mike
same
Was this review helpful to you?
